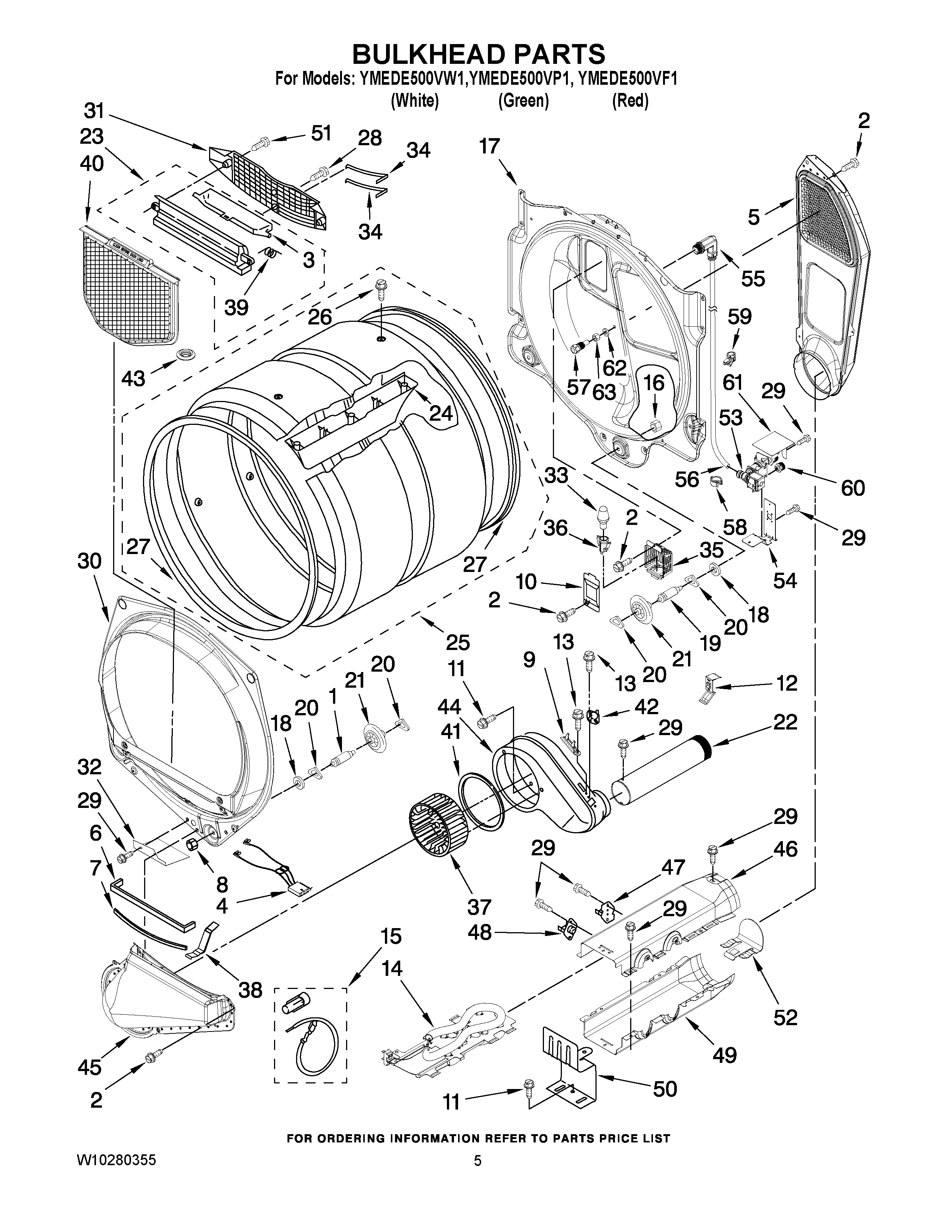

YMEDE500VP1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11222846 Whirlpool Door
4	WP3406653 Whirlpool Wire Harness
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WP3392519 Whirlpool Dryer Thermal Fuse
10	W11226088 Whirlpool Lens Assembly
11	WP489463 Whirlpool Refrigerator Screw
12	W11684573 Whirlpool Clip Assembly
13	WP90767 Whirlpool Screw
14	WP8544771 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	Bulkhead, Rear
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	279936 Whirlpool Exhaust Pipe
23	W11219327 Whirlpool Grille Outlet
24	WPW10113136 Whirlpool Drum Baffle
25	W10545924 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
30	WPL W10252304
31	W11086603 Whirlpool Dryer Link Screen Air Grille
32	W11257251 Whirlpool Shield
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	8578825 Whirlpool Bracket
36	W11222979 Whirlpool Socket
37	WP697772 Whirlpool Dryer Blower Wheel
38	WP8066208 Whirlpool Clip
39	WP3394986 Whirlpool Spring
40	W10120998 Whirlpool Dryer Lint Screen Filter
41	WP697770 Whirlpool Blower Cover Plate Seal
42	WP8577274 Whirlpool Dryer Thermistor
43	W10665050 Whirlpool Plug
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	WP8544769 Whirlpool Box
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	THRMST-FIX
49	HOUSING TAB, HEATER BOX
50	8066099 Whirlpool Bracket
51	WP3387230 Whirlpool Screw
52	8544776 Whirlpool Clip Assembly
53	Valve, Water Inlet (Includes Items, 29,52,55 & 65)
54	WPL W10044597
55	WPL W10044606
56	WPL W10044598
57	WPL W10044629
58	W10044599 Whirlpool Clip
59	WP3391018 Whirlpool Wire Tie
60	W10859554 Whirlpool Coupler
61	W10184825 Whirlpool Cover
62	W10044579 Whirlpool Washer
63	W10044628 Whirlpool Nut
