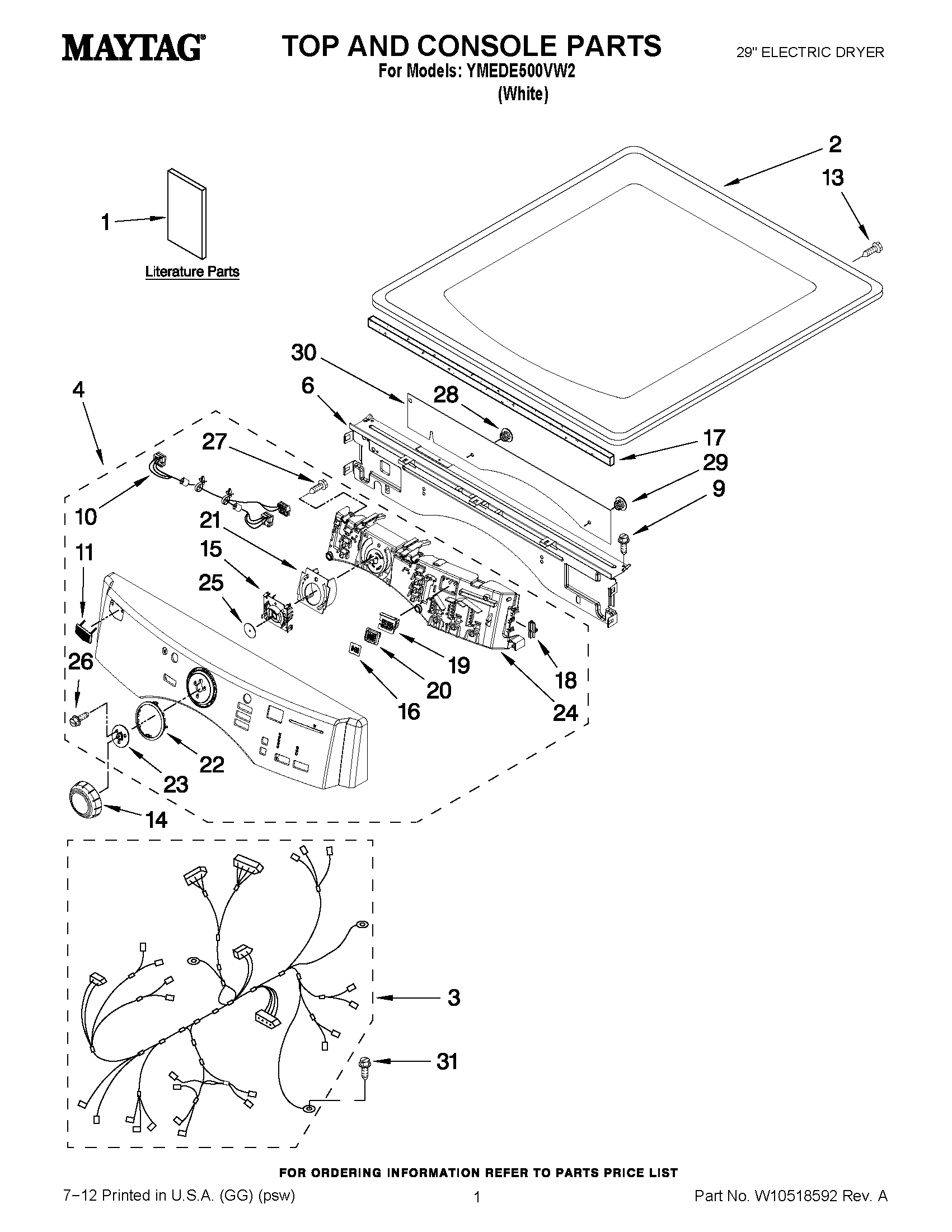

YMEDE500VW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10239302
1INSTALLATION, INSTRUCTION
1MAY W10298850
2MAY 3980634
3MAY W10251445
4PANEL, CONSOLE
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
10MAY W10242907
11BADGE (CHROME)
13SCREW
14MAY W10164576
15MAY W10170293
16MAY W10171504
17Seal, Foam Console Bracket
18PLUG, CONNECTOR FRAME
19Frame-Light (Guide Display)
20MAY W10164578
21MAY W10170295
22MAY W10164567
23MAY W10172298
24MAY W10269025
25SEAL, UI
26MAY 8540513
27MAY 8540282
28PLUG-HOLE, 1/4“
29PLUG-HOLE, 5/16“
30MAY W10215674
31Screw
