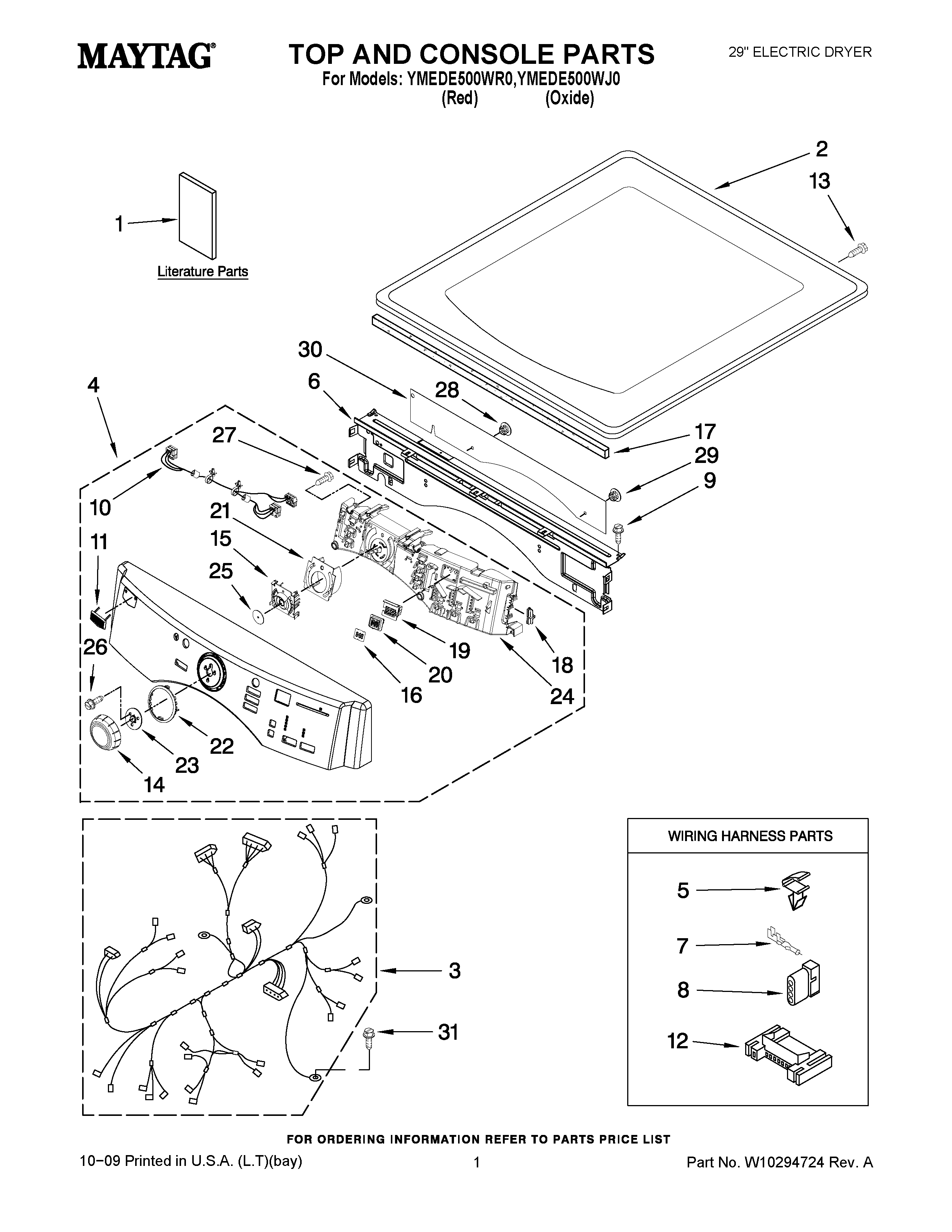

YMEDE500WR0 01 – TOP AND CONSOLE PARTS

YMEDE500WR0 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDE500WR0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, DIAGNOSTIC GUIDE
1MAY W10239302
1MAY W10258377
2MAY W10249738
2MAY W10164743
3MAY W10251445
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (OXIDE)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (RED)
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Terminal
8MAY 3936144
9SCREW
10MAY W10242907
11MAY W10177245
12CONNECTOR (MOTOR)
13Screw, 8-32 x 1/32
14MAY W10164576
15MAY W10170293
16MAY W10171504
17Seal, Foam Console Bracket
18PLUG, CONNECTOR FRAME
19Frame-Light (Guide Display)
20MAY W10164578
21MAY W10170295
22MAY W10164567
23MAY W10172298
24MAY W10269025
25SEAL, UI
26MAY 8540513
27MAY 8540282
28PLUG-HOLE, 1/4“
29PLUG-HOLE, 5/16“
30MAY W10215674
31Screw
