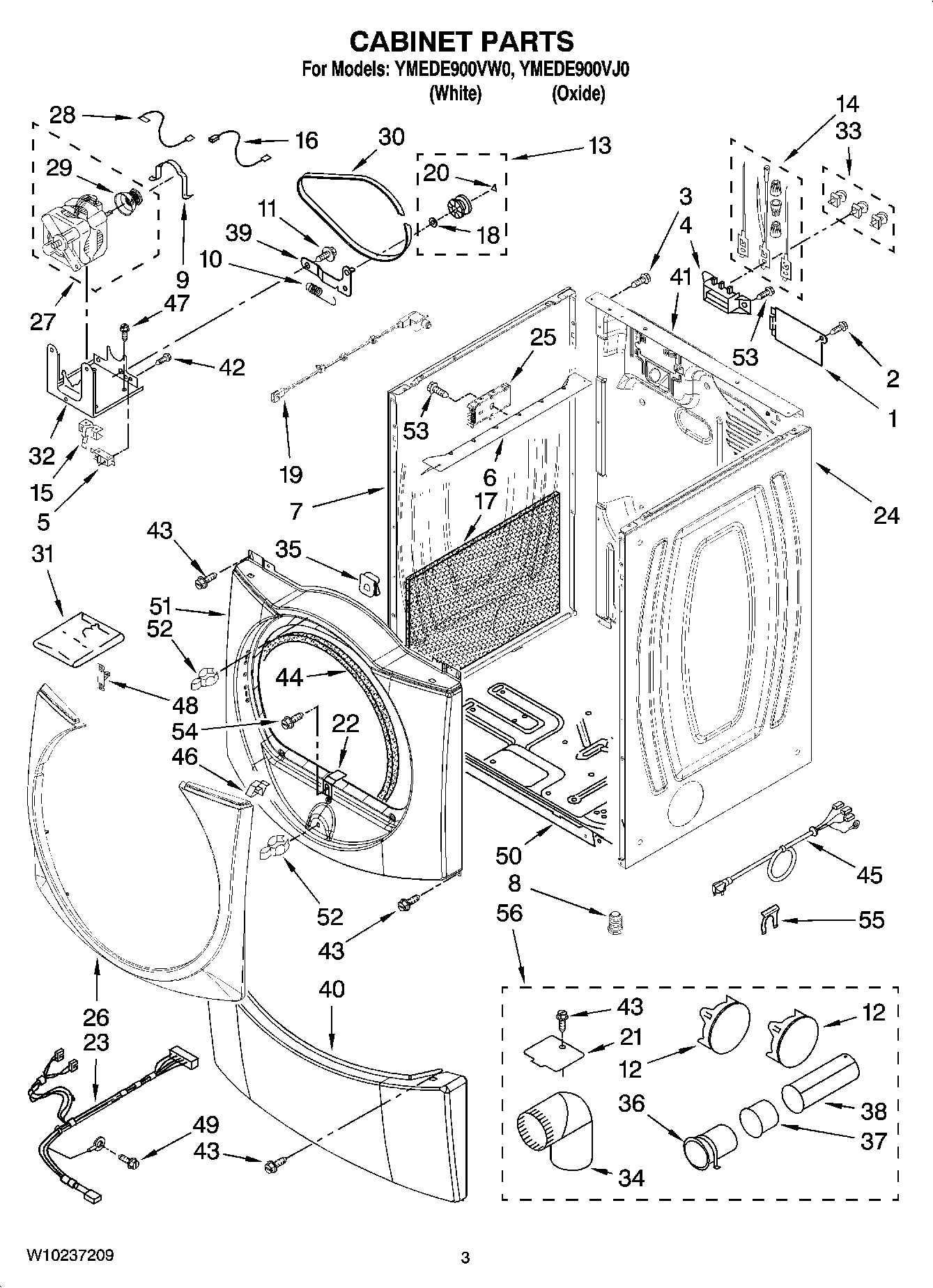

YMEDE900VJ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	Screw, 8-18 x 5/8 (External Ground)
4	MAY 3397659
5	Switch, Broken Belt
6	Bracket, Control
7	MAY W10193956
7	Panel, Side (L.H.) (White)
8	MAY 279810
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY W10151499
12	MAY 697750
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8066120
16	MAY W10167612
17	MAY W10128772
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	MAY W10181463
24	Panel, Side (R.H.) (White)
24	MAY W10193959
25	MAY W10177388
26	MAY W10164746
26	MAY W10164751
27	Motor Assembly 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8541503
32	MAY 3387118
33	MAY 279393
34	MAY 49026
35	Clip, S-Type (3)
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	Panel, Toe (White)
40	MAY W10164730
41	MAY W10053558
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	MAY 8579325
46	MAY 8519459
47	SCREW
48	Trim-Clip Metal
49	MAY 359625
50	MAY 8519207
51	MAY W10164915
51	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
52	MAY 696144
53	SCREW,8-18 X 3/8
54	SCREW
55	STRAIN-RELIEF CLIP
56	MAY 279818
56	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
