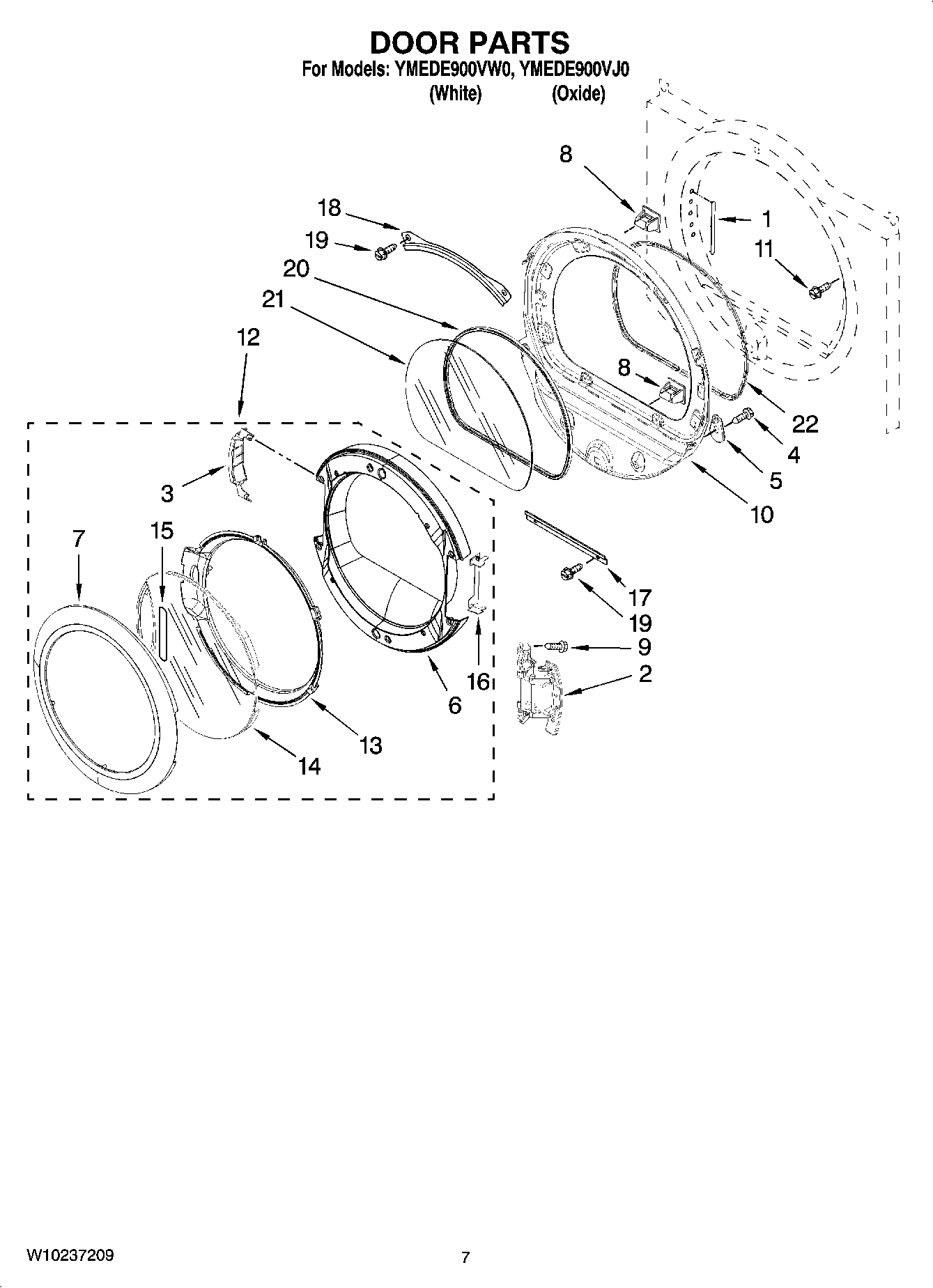

YMEDE900VJ0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY W10202939
NI	MAY 8579666A
NI	Connector, Hose
NI	Hose, Inlet 1 Ft. Hose
NI	Hose, Inlet 6 Ft. Hose With Elbow
NI	ACCESSORY PARTS, HOSE KIT FOR STEAM DRYER
NI	ACCESSORY PARTS, KIT, HOLD DOWN
NI	MISCELLANEOUS PARTS BAG, WASHER, INLET HOSE
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
1	PLUG-STRIP FRONT PANEL
2	MAY W10139920
3	Cover, Door Hinge
4	Screw
5	MAY W10048910
6	Door-Intermediate
7	Handle Ring
8	Catch, Door
9	SCREW
10	DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 1 & 8 )
11	MAY 355515
12	Door, Outer Assembly
13	MAY W10180117
14	Screen, Door
15	PAD-HANDLE
16	Door-Shield
17	MAY 8519354
18	MAY 8519356
19	Screw, 10-16 x 1/2
20	MAY 8579662
21	Glass-Window
22	Seal Door Assembly (Upper)
