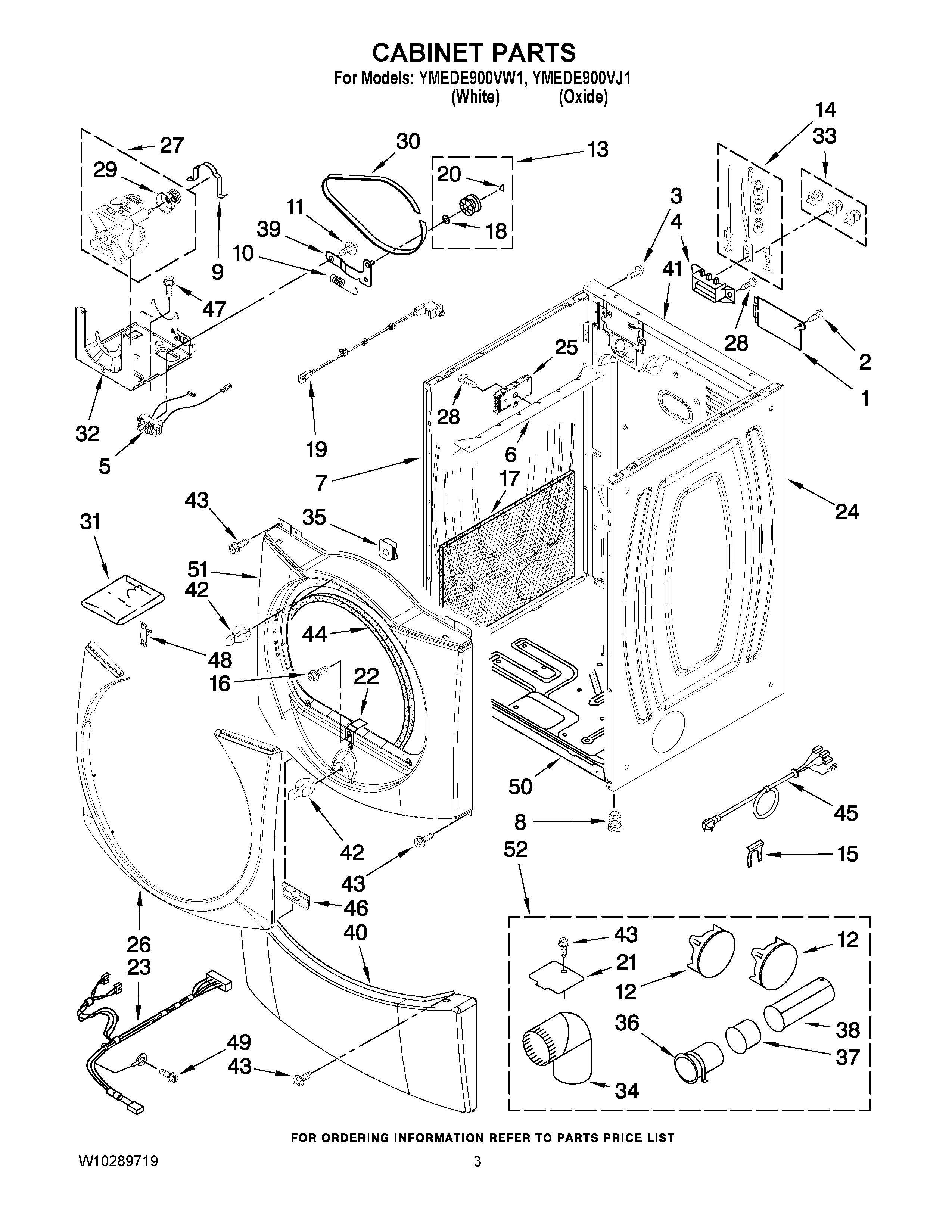

YMEDE900VJ1 02 – CABINET PARTS

Products

Position	Product
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	Screw, 8-18 x 5/8 (External Ground)
4	MAY 3397659
5	MAY W10246525
6	Bracket, Control
7	Panel, Side (L.H.) (White)
7	MAY W10193956
8	MAY 3392100
8	MAY 279810
9	CLAMP, MOTOR MOUNT
10	MAY 3387374
11	SCREW
12	MAY W10151499
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	STRAIN-RELIEF CLIP
16	SCREW
17	MAY W10123956
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	MAY W10242904
24	Panel, Side (R.H.) (White)
24	MAY W10193959
25	MAY W10174746
26	TRIM-RING ASSEMBLY (INCLUDE, ITEM. 48 ) (OXIDE)
26	TRIM-RING ASSEMBLY (WHITE)
27	Motor Assembly 60 HZ.
28	SCREW,8-18 X 3/8
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8541503
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	Clip, S-Type (3)
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY W10246285
40	PANEL, TOE
41	MAY W10116475
42	MAY 696144
43	SCREW
44	MAY 3387242
45	MAY 8579325
46	MAY 8519459
47	SCREW
48	Trim-Clip Metal
49	Screw
50	MAY W10239098
51	MAY W10164915
51	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
52	MAY 279818
52	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
