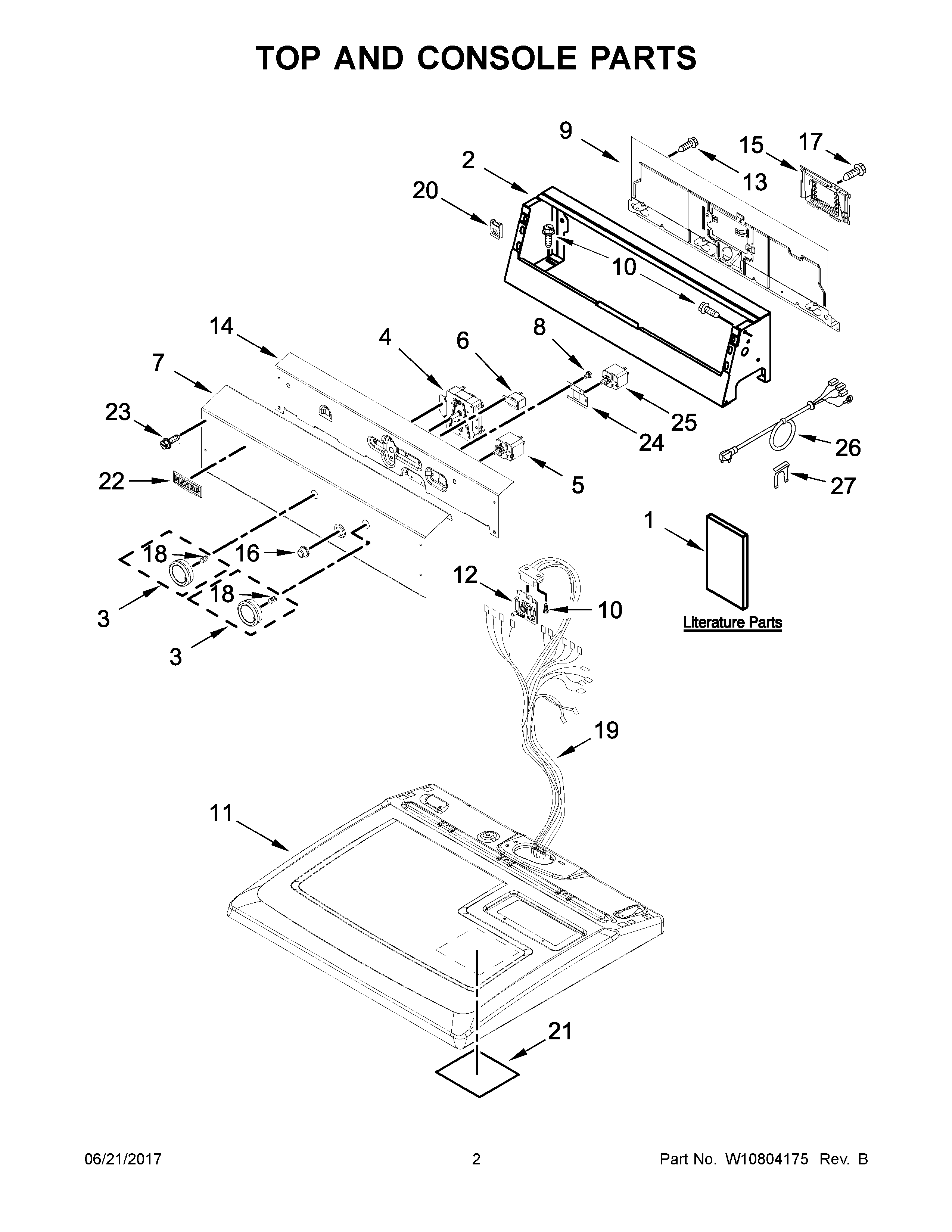

YMEDP475EW0 02 – TOP AND CONSOLE PARTS

YMEDP475EW0 02 – TOP AND CONSOLE PARTS

Written by

in

YMEDP475EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AGUIDE, USE AND CARE
1BWIRING DIAGRAM
1CQUICK START GUIDE
1DENERGY GUIDE
2CONSOLE
3ASSEMBLY, CONTROL KNOB (GREY)
4MAY W10185992
5MAY 8578352
6MAY 694419
7FASCIA
8MAY W10219342
9MAY 8317305
10MAY 8533971
11TOP (WHITE)
12MAY W10476828
13SCREW
14BRACKET, BACK
15MAY W10286180
16MAY W10817851
17SCREW
18CLIP, SPRING
19HARNESS, MAIN
20NUT, "U"
21MAY W10836097
22MAY W10612926
23SCREW
24MAY W10831297
25Switch, Push-To-Start
26CORD, POWER
27STRAIN-RELIEF CLIP
