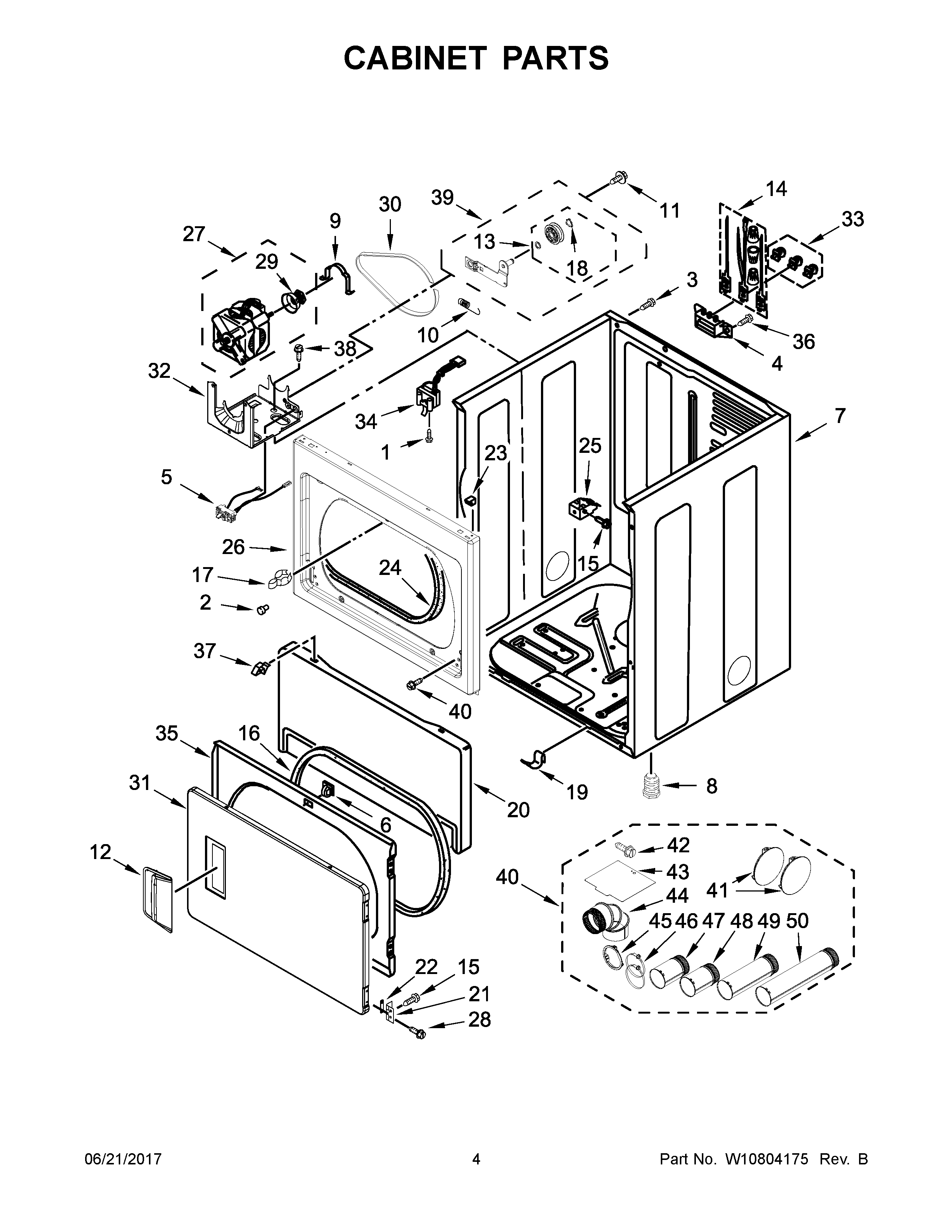

YMEDP475EW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	SCREW
4	MAY 3397659
5	SWITCH, BROKEN BELT
6	MAY 3392538
7	MAY W10547697
8	MAY W10561321
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	Handle, Door (White)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	SCREW
16	MAY 3390735
17	MAY 696144
18	WASHER, TRI RING
19	CLIP
20	Toe Panel (Includes Item. 2) (White)
21	ASSEMBLY, HINGE & PIN (SILVER)
22	PLUG, HINGE SCREW
23	LOCK TOP
24	MAY 3387242
25	CLIP, FRONT PANEL
26	PANEL, FRONT (WHITE)
27	ASSEMBLY, MOTOR
28	MAY 342055
29	MAY W10460106
30	BELT, DRIVE
31	DOOR, FRONT
32	MAY W10242878
33	MAY 279393
34	Switch, Door
35	MAY W10323061
36	SCREW
37	RETAINER
38	SCREW
39	ASSEMBLY, IDLER
40	MAY W10470674
41	PLUG, MULTIVENT (MIDNIGHT GREY)
42	MAY 488729
43	MAY W10354249
44	MAY W10416072
45	MAY W10344699
46	HOSE CLAMP
47	PIPE, EXHAUST (SHORT)
48	PIPE, EXHAUST
49	PIPE, EXHAUST (MEDIUM)
50	PIPE, EXHAUST (LONG)
