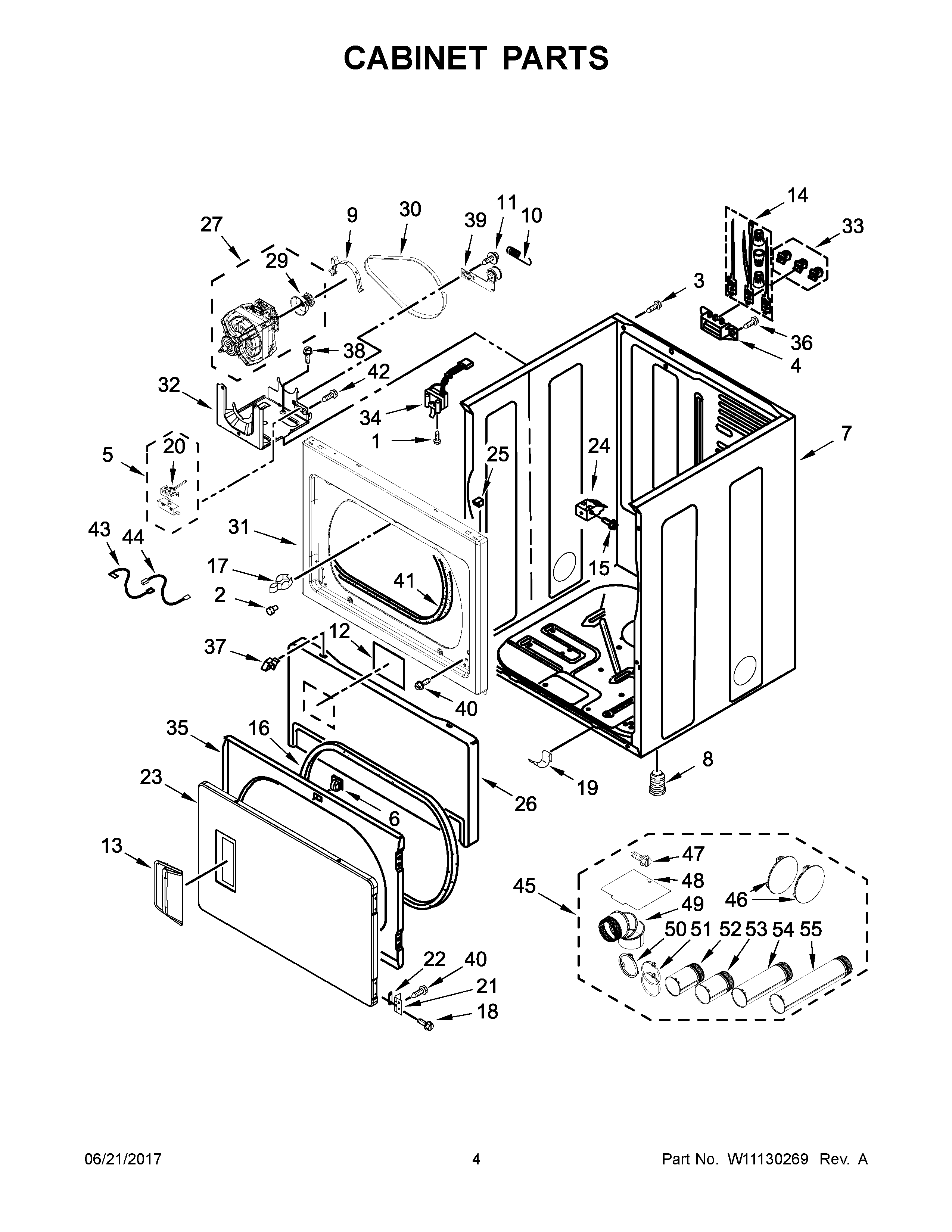

YMEDP575GW0 03 – CABINET PARTSadmin2025-04-26T08:54:28+00:00YMEDP575GW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | BUMPER |
| 3 | SCREW |
| 4 | MAY 3397659 |
| 5 | Switch, Broken Belt |
| 6 | MAY 3392538 |
| 7 | MAY W10547697 |
| 8 | MAY W10561321 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY W10836097 |
| 13 | Handle, Door (White) |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | SCREW |
| 16 | MAY 3390735 |
| 17 | MAY 696144 |
| 18 | MAY 342055 |
| 19 | CLIP |
| 20 | MAY 8066120 |
| 21 | ASSEMBLY, HINGE & PIN (SILVER) |
| 22 | PLUG, HINGE SCREW |
| 23 | DOOR, FRONT |
| 24 | CLIP, FRONT PANEL |
| 25 | LOCK TOP |
| 26 | Toe Panel (Includes Item. 2) (White) |
| 27 | MOTOR |
| 28 | MAY 3393657 |
| 29 | PULLEY, MOTOR |
| 30 | BELT, DRIVE |
| 31 | PANEL, FRONT (WHITE) |
| 32 | MAY 3387118 |
| 33 | MAY 279393 |
| 34 | Switch, Door |
| 35 | MAY W10323061 |
| 36 | SCREW, 10-16 X 1/2 |
| 37 | RETAINER |
| 38 | SCREW |
| 39 | PULLEY-IDLER ASSEMBLY |
| 40 | SCREW |
| 41 | MAY 3387242 |
| 42 | Screw, 6-20 x 1-1/16 |
| 43 | Wire, Jumper (Broken Belt Switch) |
| 44 | MAY W10167612 |
| 45 | MAY W10470674 |
| 46 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 47 | MAY 488729 |
| 48 | MAY W10354249 |
| 49 | MAY W10416072 |
| 50 | MAY W10344699 |
| 51 | HOSE CLAMP |
| 52 | PIPE, EXHAUST (SHORT) |
| 53 | PIPE, EXHAUST |
| 54 | PIPE, EXHAUST (MEDIUM) |
| 55 | PIPE, EXHAUST (LONG) |
