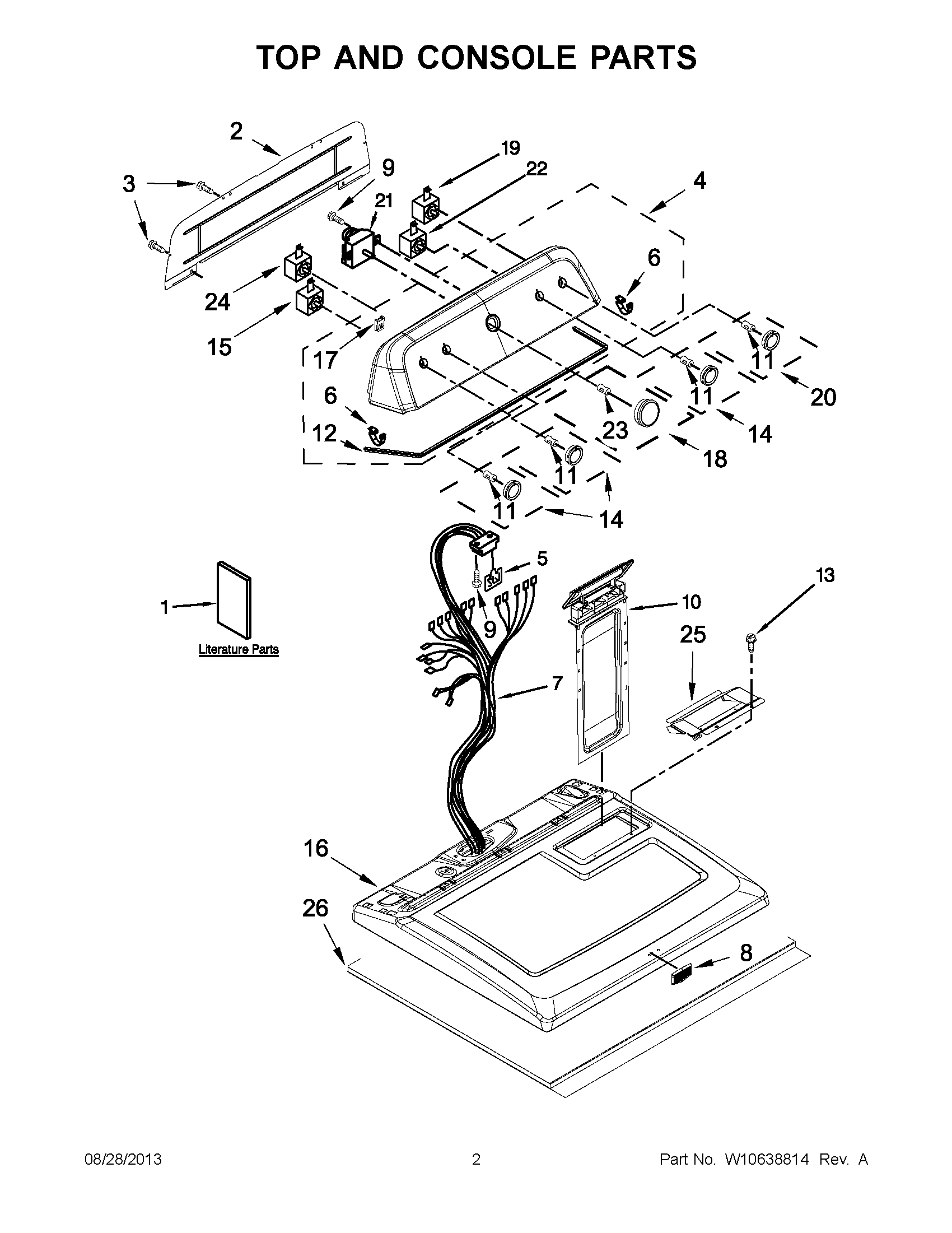

YMEDX500BW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10562360
1	MAY W10594781
2	MAY W10416486
3	Screw
4	MAY W10557259
5	MAY W10476828
6	MAY 8312709
7	MAY W10577884
8	MAY W10492808
9	MAY 3348629
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	MAY W10588162
13	SCREW
14	MAY W10562155
15	MAY W10562712
16	MAY W10513432
17	NUT, "U"
18	MAY W10558463
19	MAY W10563095
20	ASSEMBLY, PUSH TO START KNOB (GREY)
21	MAY W10519558
22	MAY W10563094
23	Spring, Clip Knob
24	MAY W10627711
25	MAY W10508979
26	MAY W10123956
