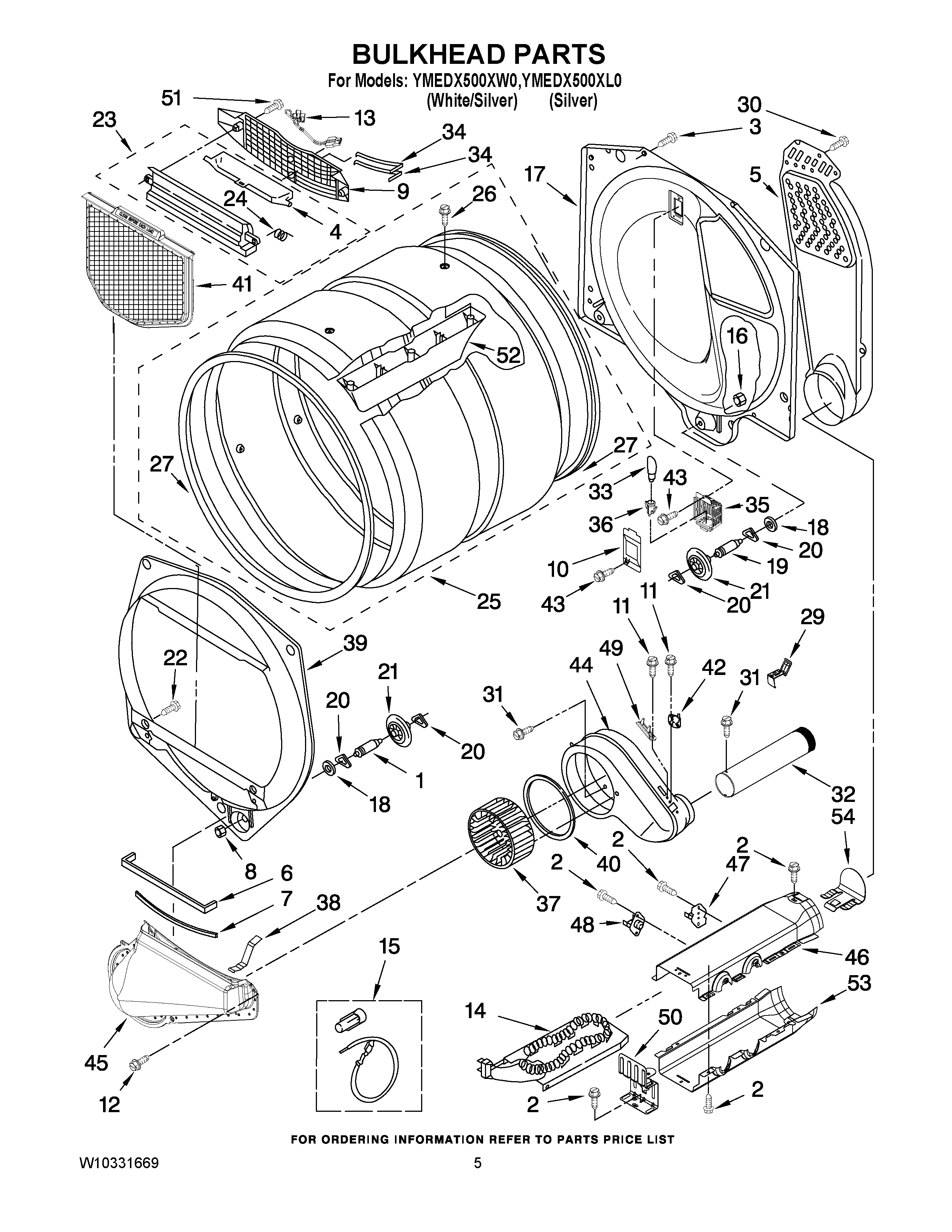

YMEDX500XL0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY W10153413
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10153412
10	MAY 3402841
12	MAY 359625
13	MAY W10298258
14	MAY W10044440
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	SCREW
23	Housing, Outlet
24	Spring, Lint Screen Door
25	Complete Drum Assembly
26	MAY W10219342
27	MAY W10166807
29	CLIP, EXHAUST
30	Screw
31	Screw
32	PIPE, EXHAUST
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10214261
37	MAY 697772
38	CLIP-SPRING
39	BULKHEAD, FRONT
40	SEAL, PLATE COVER
41	MAY W10049370
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8544769
47	MAY 8318314
48	MAY 3391914
49	Fuse, Thermal (91 C)
50	MAY 8066099
51	SCREW
52	BAFFLE, DRUM
53	MAY 8544770
54	MAY 8544776
