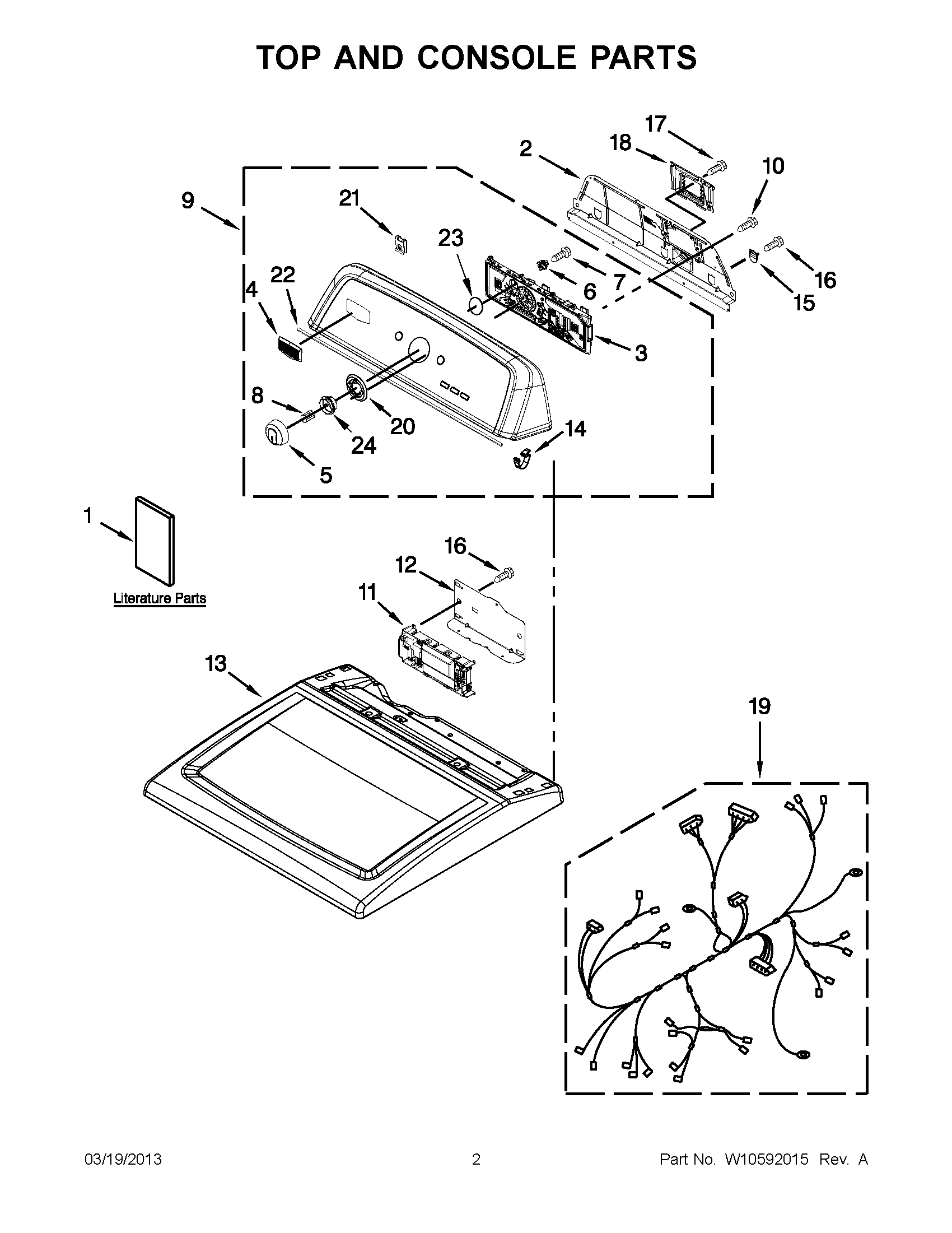

YMEDX500XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10417013
1	MAY W10097013
1	MAY W10253978
1	MAY W10514185
2	MAY W10550615
3	ASSEMBLY, USER INTERFACE
4	MAY W10492808
5	MAY W10251381
6	TENSIONER, FASCIA
7	MAY W10219342
8	CLIP, SPRING
9	ASSEMBLY, CONSOLE (WHITE)
10	Screw
11	MAY W10317638
12	MAY W10271580
13	MAY W10268730
14	MAY 8312709
15	PLUG, UPPER REAR PANEL
16	SCREW
17	Screw, 8-18 x 3/8
18	MAY W10286180
19	MAY W10253984
20	MAY W10305134
21	NUT, "U"
22	MAY W10280079
23	SEAL, USER INTERFACE
24	MAY W10326923
