YMEDX600XW1 01 – TOP AND CONSOLE PARTS

YMEDX600XW1 01 – TOP AND CONSOLE PARTS

Written by

in

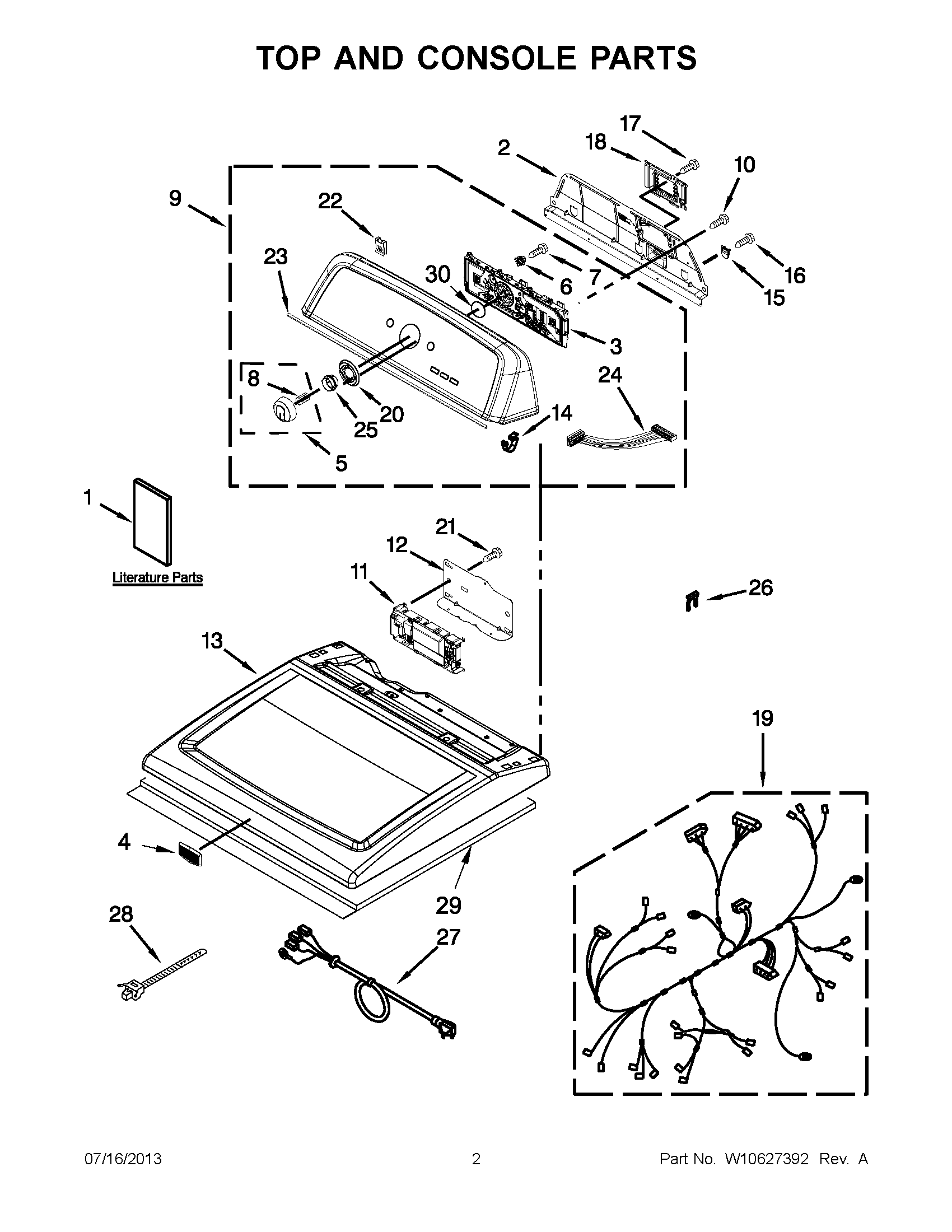

YMEDX600XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10417013
1MAY W10514185
1MAY W10096989
1MAY W10253978
2MAY W10550615
3ASSEMBLY, USER INTERFACE
4MAY W10492808
5MAY W10251381
6TENSIONER, FASCIA
7MAY W10219342
8CLIP, SPRING
9ASSEMBLY, CONSOLE (WHITE)
10Screw
11MAY W10317638
12MAY W10271580
13MAY W10268730
14MAY 8312709
15PLUG, UPPER REAR PANEL
16SCREW
17Screw, 8-18 x 3/8
18MAY W10286180
19MAY W10253984
20MAY W10305134
21MAY 8533917
22NUT, "U"
23MAY W10280079
24HARNESS, USER INTERFACE
25MAY W10326923
26STRAIN-RELIEF CLIP
27MAY 8579325
28Cable Tie
29MAY W10123956
30SEAL, USER INTERFACE
