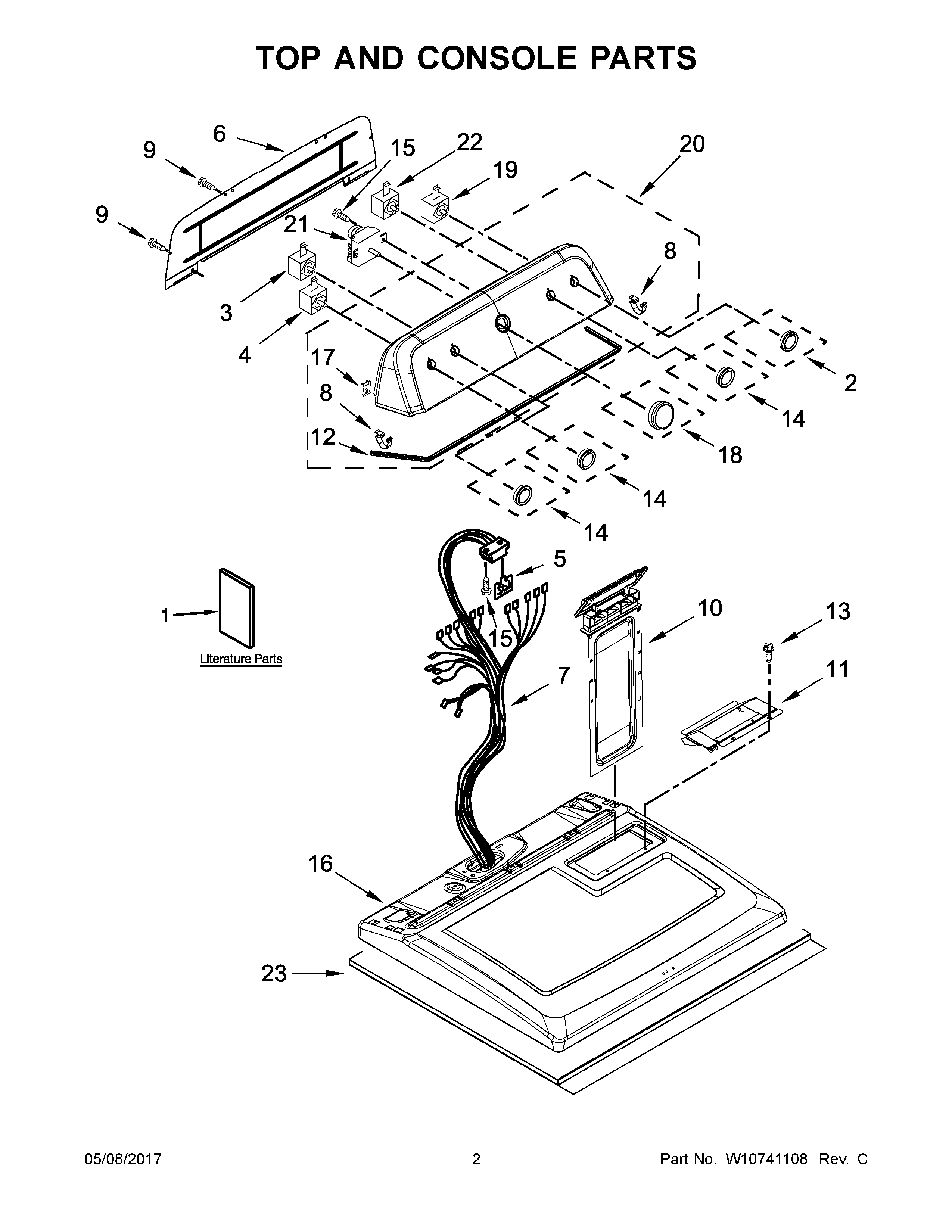

YMEDX6STBW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1A	DIAGRAM, WIRING
2	ASSEMBLY, PUSH TO START KNOB (GREY)
3	MAY W10627711
4	SWITCH, ROTARY (WRINKLE CONTROL)
5	MAY W10476828
6	MAY W10416486
7	WIRING HARNESS, MAIN
8	MAY 8312709
9	Screw
10	LINT SCREEN (WHITE)
11	COLLAR, LINT CHUTE
12	MAY W10588162
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	TOP (WHITE)
17	NUT, "U"
18	MAY W10558463
19	MAY W10563095
20	ASSEMBLY, CONSOLE (WHITE)
21	ASSEMBLY, TIMER
22	SWITCH, ROTARY (TEMPERATURE)
23	MAY W10123956
