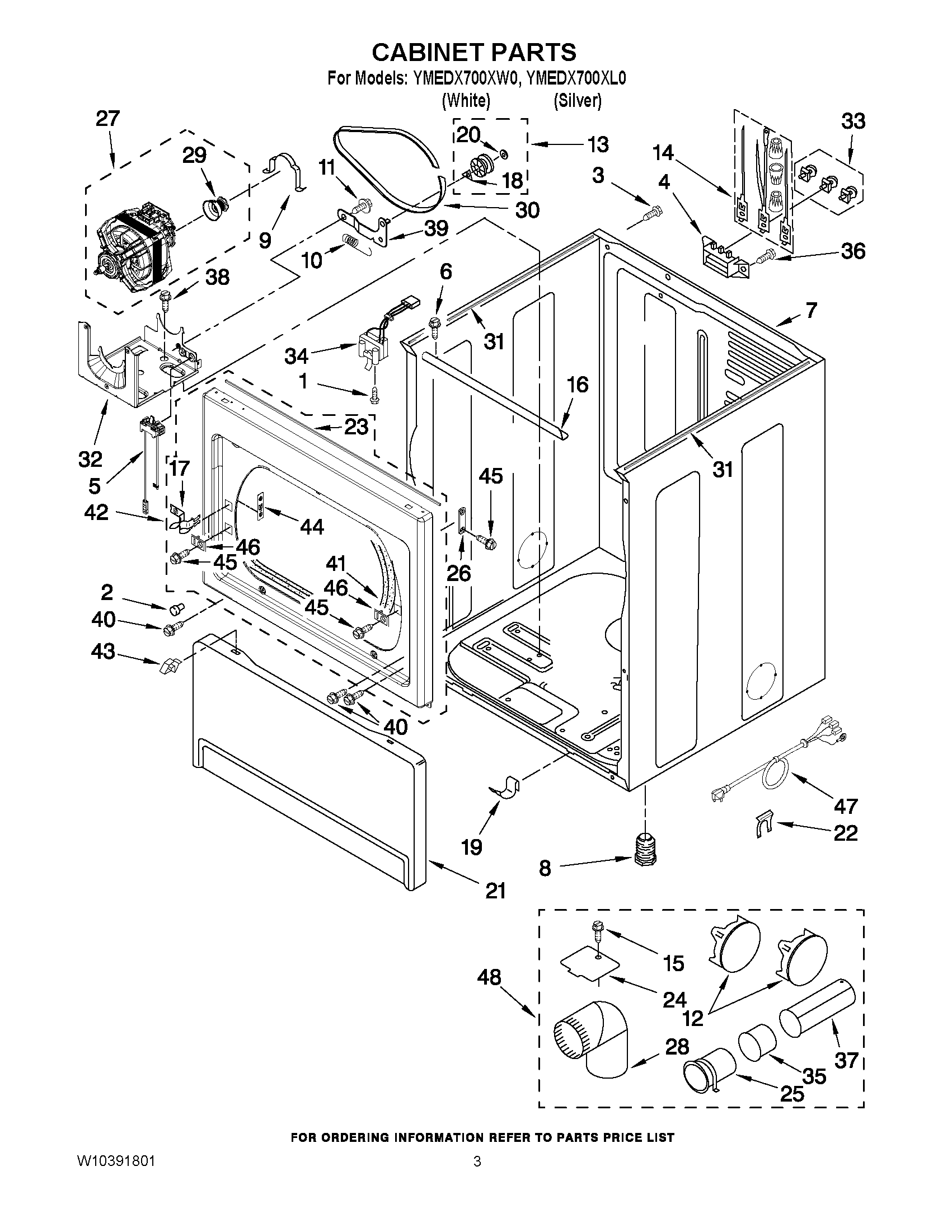

YMEDX700XW0 02 – CABINET PARTS

Products

Position	Product
NI	PLUG, MULTIVENT
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 8533971
4	MAY 3397659
5	MAY W10246525
6	SCREW
7	MAY W10292891
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
12	MAY W10151499
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 3390646
16	BRACKET, CABINET
17	Strike, Door
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	Toe Panel (Includes Item. 2) (White)
21	TOE PANEL (SILVER)
22	STRAIN-RELIEF CLIP
23	SEAL, SPILL GUARD
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	PLUG, HINGE SCREW
26	PLUG, FRONT PANEL (SILVER)
27	Motor Assembly 60 HZ.
28	MAY 49026
29	Pulley 60 HZ.
30	MAY W10112954
31	SEAL, FOAM
32	MAY W10242878
33	MAY 279393
34	Switch, Door
35	MAY 8563750
36	SCREW, 10-16 X 1/2
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	SCREW
41	MAY 3387242
42	MAY W10362983
42	MAY W10362984
43	RETAINER
44	MAY 3390902
45	MAY 342055
46	PLUG-STRIKE
46	MAY W10097055
47	MAY 8579325
