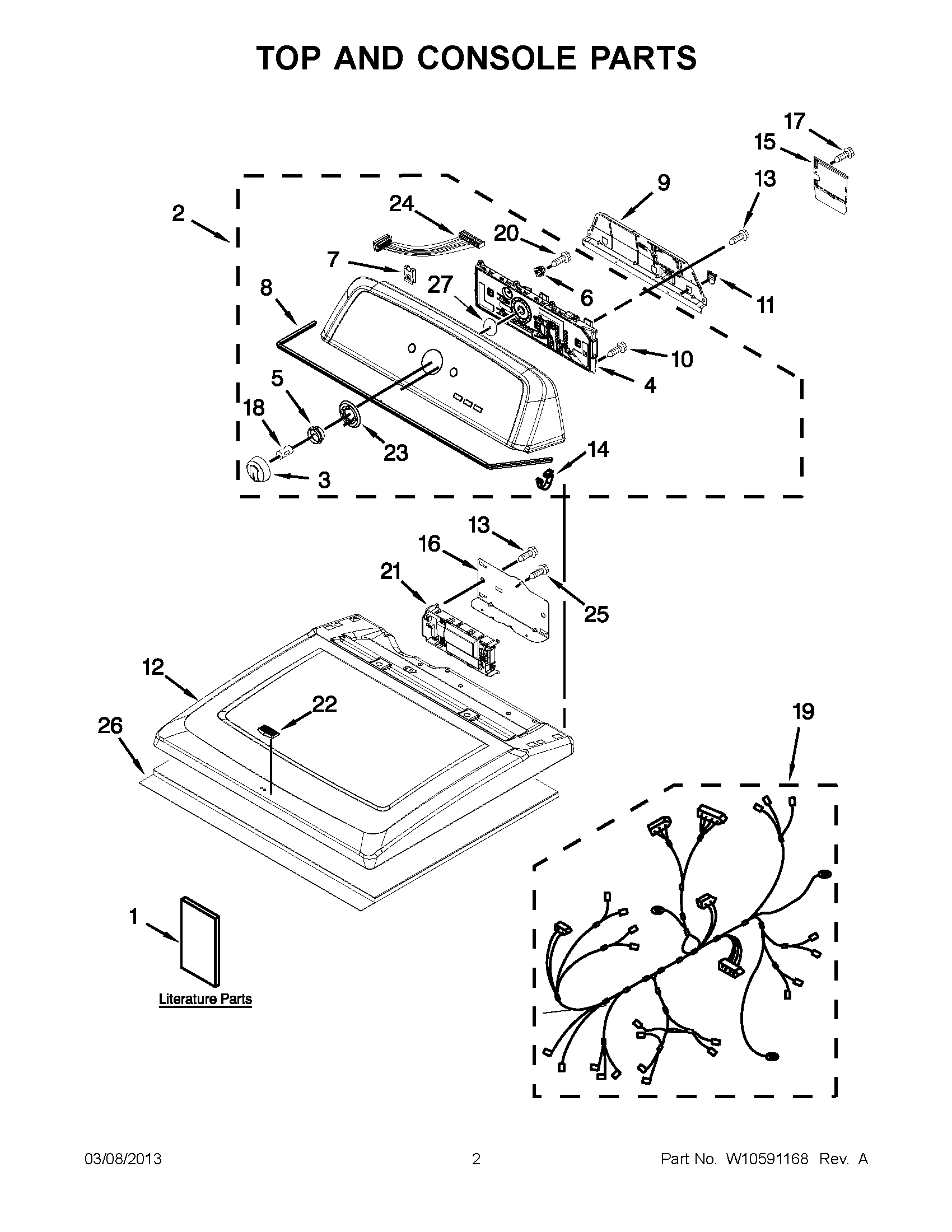

YMEDX700XW1 01 – TOP AND CONSOLE PARTS

YMEDX700XW1 01 – TOP AND CONSOLE PARTS

Written by

in

YMEDX700XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10096989
1MAY W10417013
1MAY W10514185
2MAY W10293248
3MAY W10251381
4USER INTERFACE ASSEMBLY
5MAY W10326923
6TENSIONER, FASCIA
7NUT, "U"
8MAY W10280079
9MAY W10550615
10SCREW
11PLUG, UPPER REAR PANEL
12MAY W10268730
13SCREW
14MAY 8312709
15MAY W10286180
16MAY W10271580
17Screw, 8-18 x 3/8
18CLIP, SPRING
19MAY W10287254
20MAY W10219342
21CCU-CONTROL
22MAY W10492808
23MAY W10305134
24HARNESS, USER INTERFACE
25MAY 8533971
26MAY W10123956
27SEAL, USER INTERFACE
