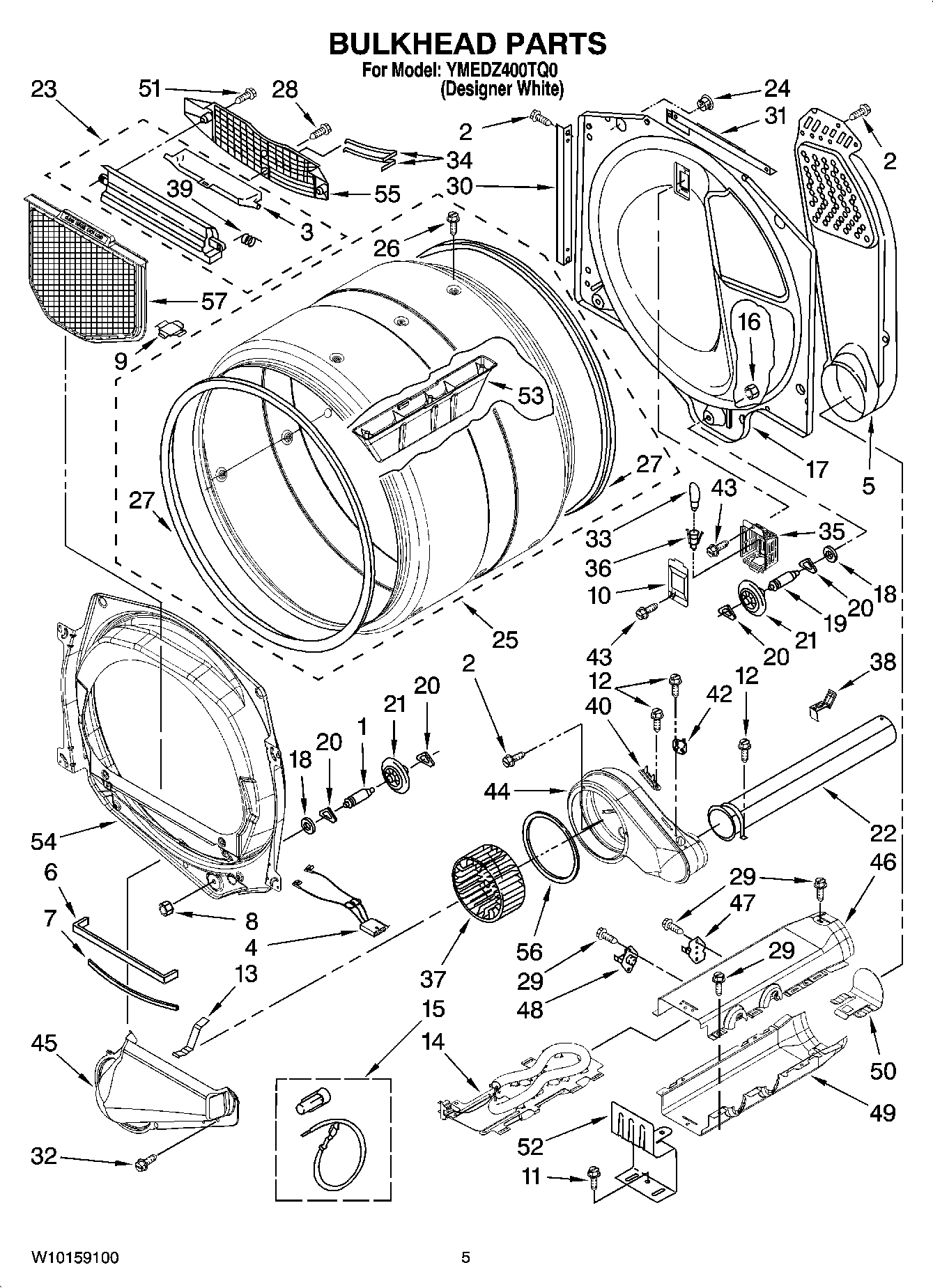

YMEDZ400TQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY 8563758
4	SENSOR HARNESS
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	Plug, Drum Hole
10	MAY 3402841
11	Screw
12	MAY 8533971
13	CLIP-SPRING
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8563728
23	Housing, Outlet
24	MAY 8529007
25	MAY 8563735
26	MAY W10109200
27	MAY 697694
28	Screw, 8-18 x 1/2
29	SCREW,8-18 X 3/8
30	MAY 8519221
31	MAY 8571651
32	Screw
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10136369
37	MAY 697772
38	CLIP, EXHAUST
39	Spring, Lint Screen Door
40	Fuse, Thermal (91 C)
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8544769
47	MAY 8318314
48	MAY 3391914
49	MAY 8544770
50	MAY 8544776
51	SCREW
52	MAY 8066099
53	MAY 8565733
54	MAY 8565061
55	MAY 8563756
56	SEAL, PLATE COVER
57	MAY W10049370
