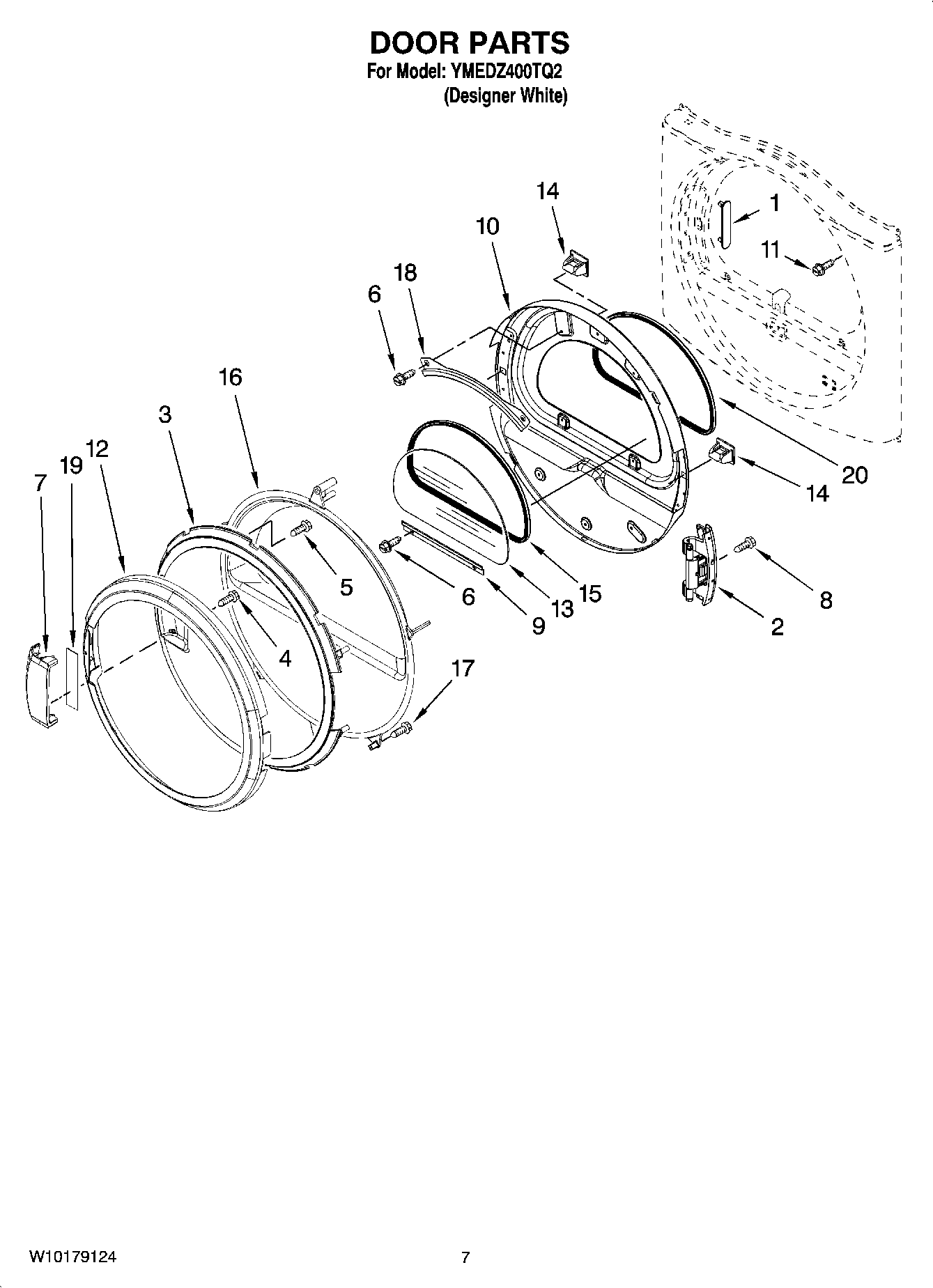

YMEDZ400TQ2 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

YMEDZ400TQ2 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

YMEDZ400TQ2 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIMAY 8563738
NIACCESSORY PARTS, KIT, HOLD DOWN
1MAY 8565119
2DOOR HINGE ASSEMBLY
3Door, Screen Intermediate Assy.
4Screw
5MAY 3400618
6Screw, 10-16 x 1/2
7HANDLE, DOOR (INCLUDES ILLUS.19.)
8SCREW
9MAY 8519354
10Door Assembly (Inner) (Includes Illus. 1 & 14 )
11MAY 355515
12Door, Outer Ring
13MAY 8565117
14Catch, Door
15MAY 8579663
16DOOR,INTERMEDIATE
17MAY 8534022
18MAY 8519356
19MAY W10112927
