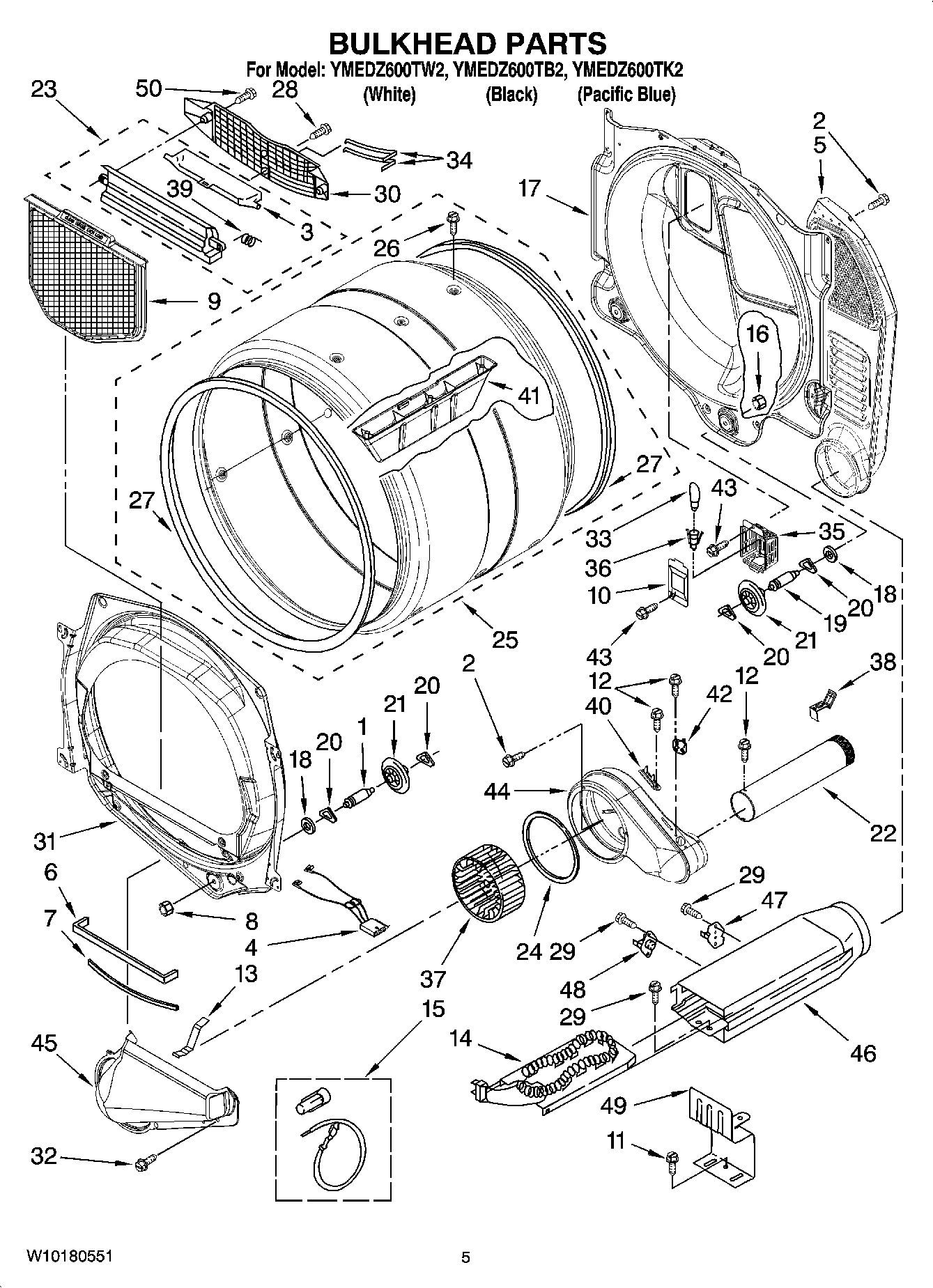

YMEDZ600TK2 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY W10153413
4	SENSOR HARNESS
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
11	Screw
12	MAY 8533971
13	CLIP-SPRING
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8563728
23	Housing, Outlet
24	SEAL, PLATE COVER
25	MAY W10153420
26	MAY W10109200
27	MAY W10166807
28	Screw, 8-18 x 1/2
29	SCREW,8-18 X 3/8
30	MAY W10153412
31	MAY 8565061
32	Screw
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10136369
37	MAY 697772
38	CLIP, EXHAUST
39	Spring, Lint Screen Door
40	Fuse, Thermal (91 C)
41	MAY W10153409
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	HEATER BOX,
47	MAY 8318314
48	MAY 3391914
49	MAY 8066099
50	SCREW
