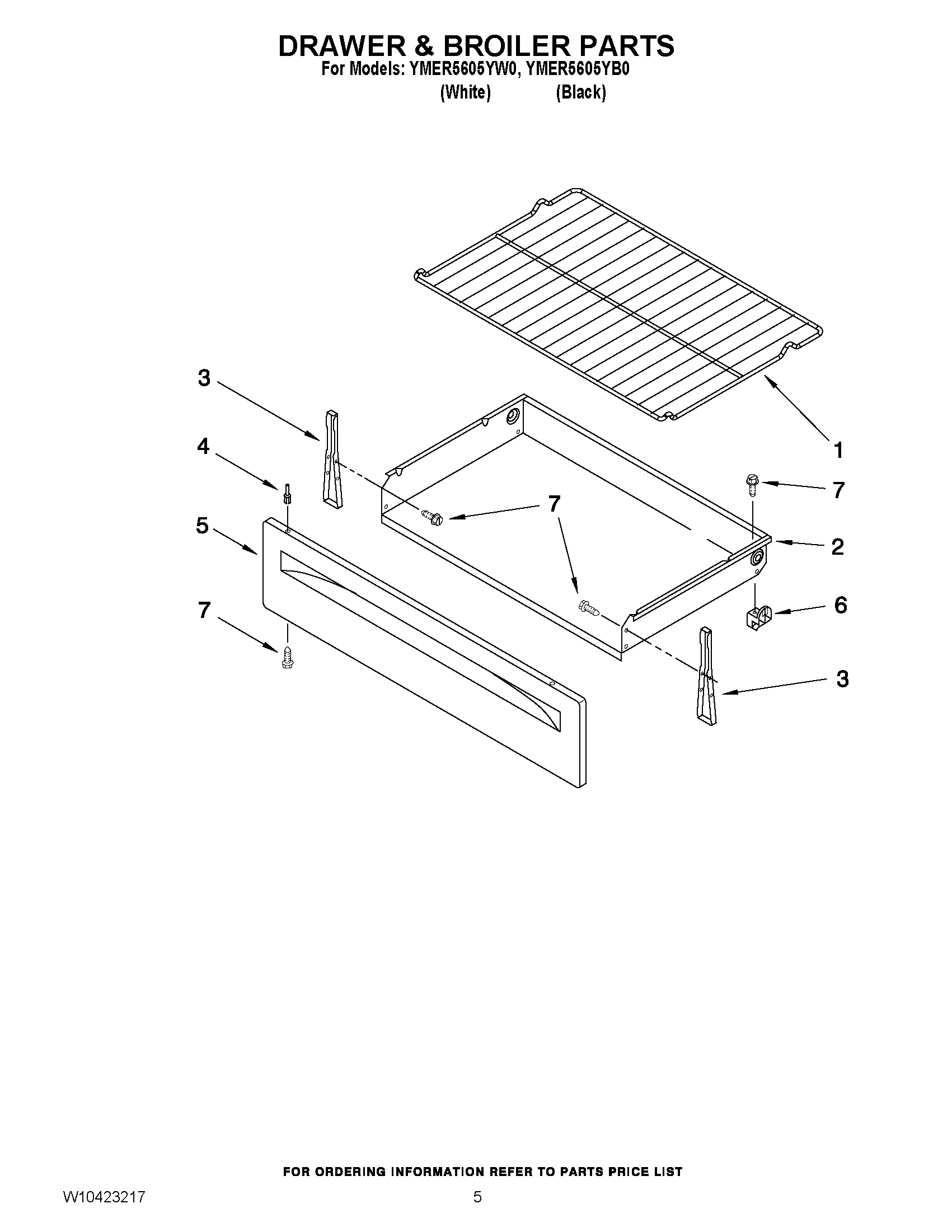

YMER5605YB0 04 – DRAWER & BROILER PARTS

YMER5605YB0 04 – DRAWER & BROILER PARTS

Written by

in

YMER5605YB0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY 9761031
3WHITE
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER FRONT (BLACK)
6GLIDE, DRAWER
7SCREW
