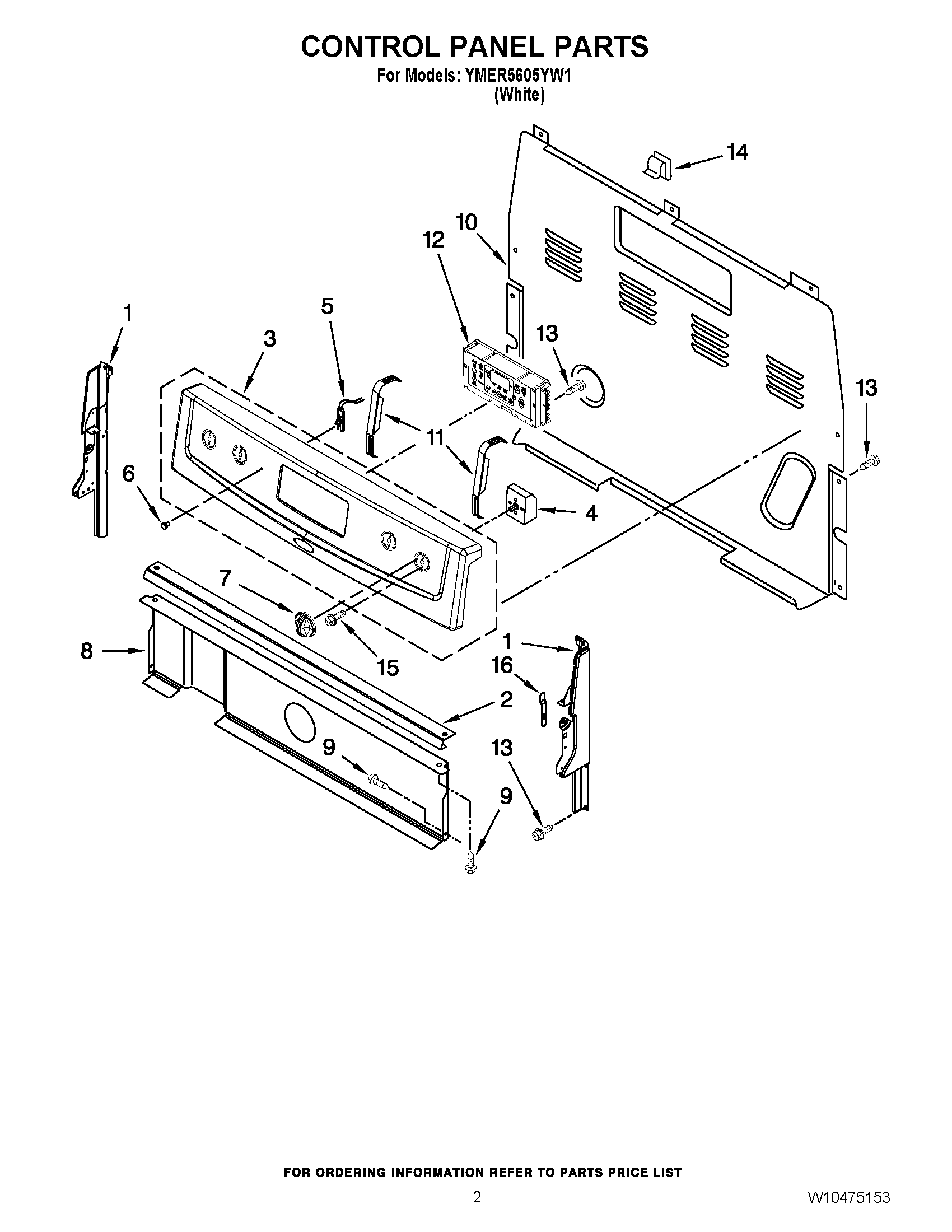

YMER5605YW1 02 – CONTROL PANEL PARTS

YMER5605YW1 02 – CONTROL PANEL PARTS

Written by

in

YMER5605YW1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
2Bracket, Console
3MAY W10276853
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9Screw (White)
10COVER, UPPER REAR
11BRACKET, MOUNTING, EOC
12CONTROL, RANGE LCC90 (WHITE)
13SCREW
14MAY 8273564
15SCREW
16CLIP, SPRING
