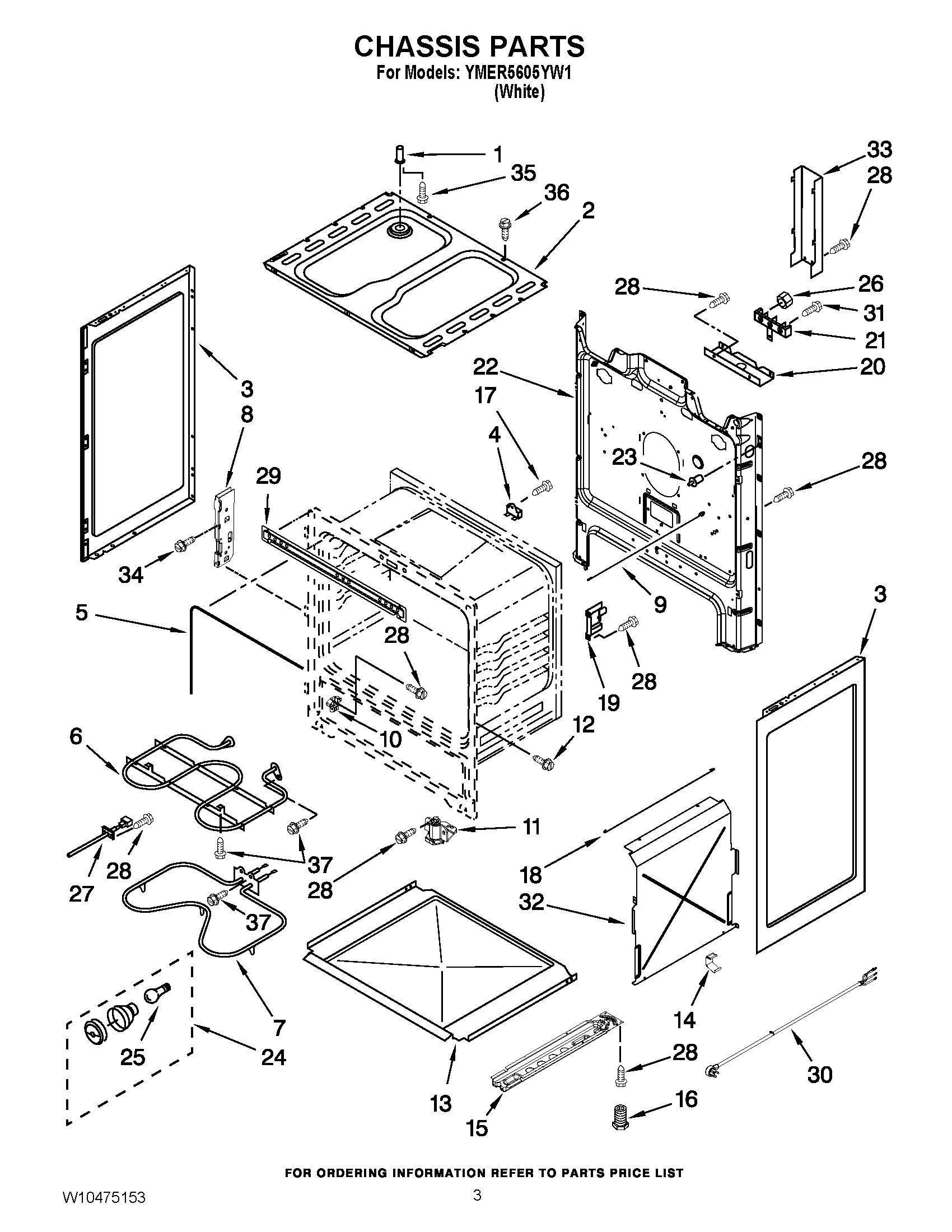

YMER5605YW1 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, BACK
1	MAY 3169143
2	BOX, BURNER
3	MAY W10322769
4	FUSE, THERMAL
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	RECEIVER, HINGE
9	ROD, DOOR SWITCH
10	GLIDE, DRAWER
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	SCREW
18	ROD, INSULATION RETAINER
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	MAY 9757262
24	MAY 3196701
25	BULB, OVEN LIGHT
26	WP7103P027-60 Whirlpool Nut
27	SENSOR, OVEN
28	SCREW
29	Guard, Wire
30	WIRING HARNESS PARTS, CORD, POWER
31	SCREW
32	RETAINER, INSULATION
33	COVER, TERMINAL BLOCK
34	MAY W10031780
35	SCREW
36	SCREW
37	SCREW
