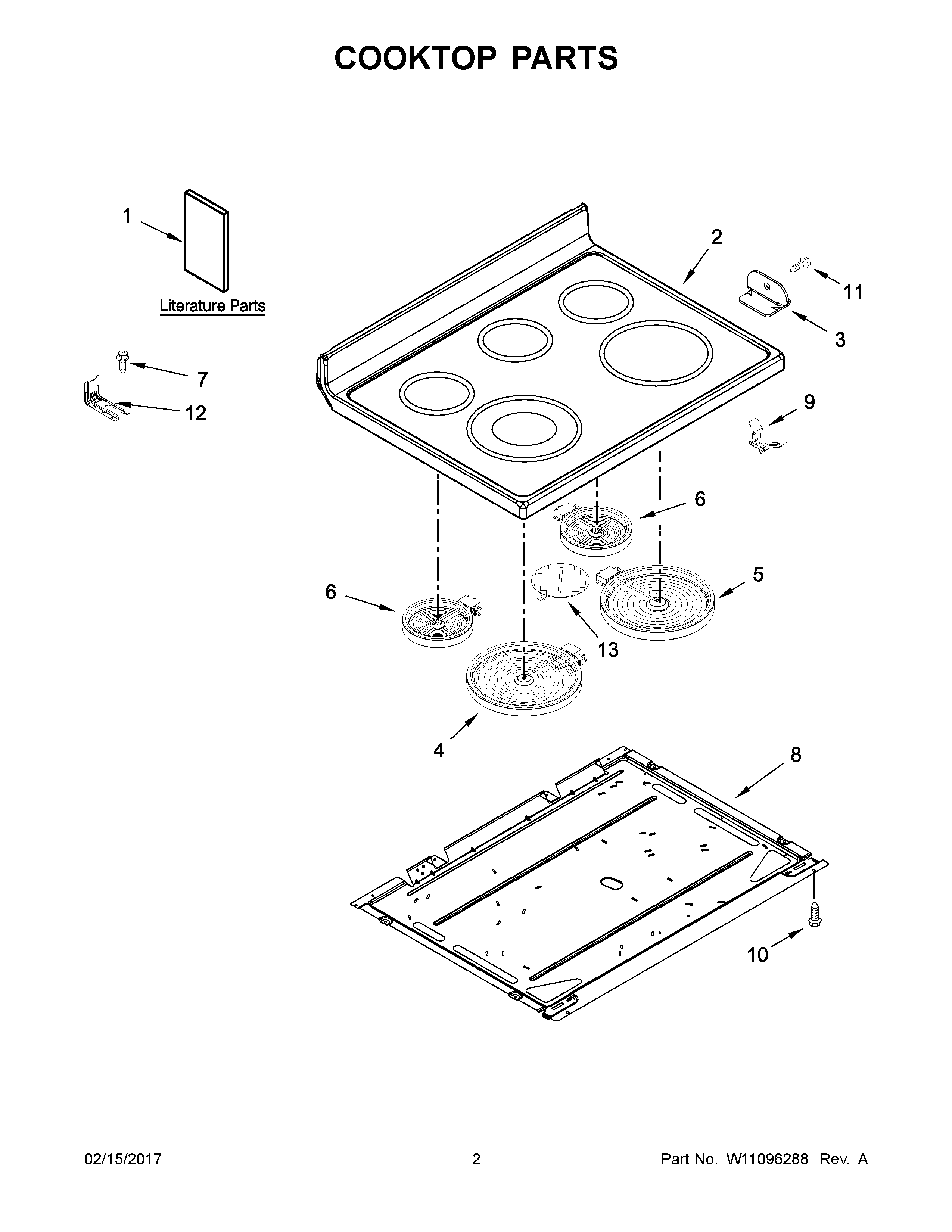

YMER6600FB0 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	MAY W10901138
NI	HARNESS, HIDDEN BAKE
NI	HARNESS, WARM ZONE
NI	HARNESS, COOKTOP (LEFT)
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, WIRE (COOKTOP RIGHT)
1C	SHEET, TECH
1D	TIPS, SAFE COOKING (ENGLISH)
1E	TIPS, SAFE COOKING (FRENCH)
1A	MAY W11037228
1	MAY W11037227
1B	MAY W10403812
2A	MAY W11022825
2	MAY W11022824
3	BRACKET, COOKTOP (LEFT)
3A	BRACKET, COOKTOP (RIGHT)
4	ELEMENT (3000/1400W) (LEFT FRONT)
5	ELEMENT (2500W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	SCREW, ANTI-TIP KIT
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	SCREW
11	SCREW
12	BRACKET, ANTI-TIP
13	ELEMENT, WARM ZONE (CENTER)
