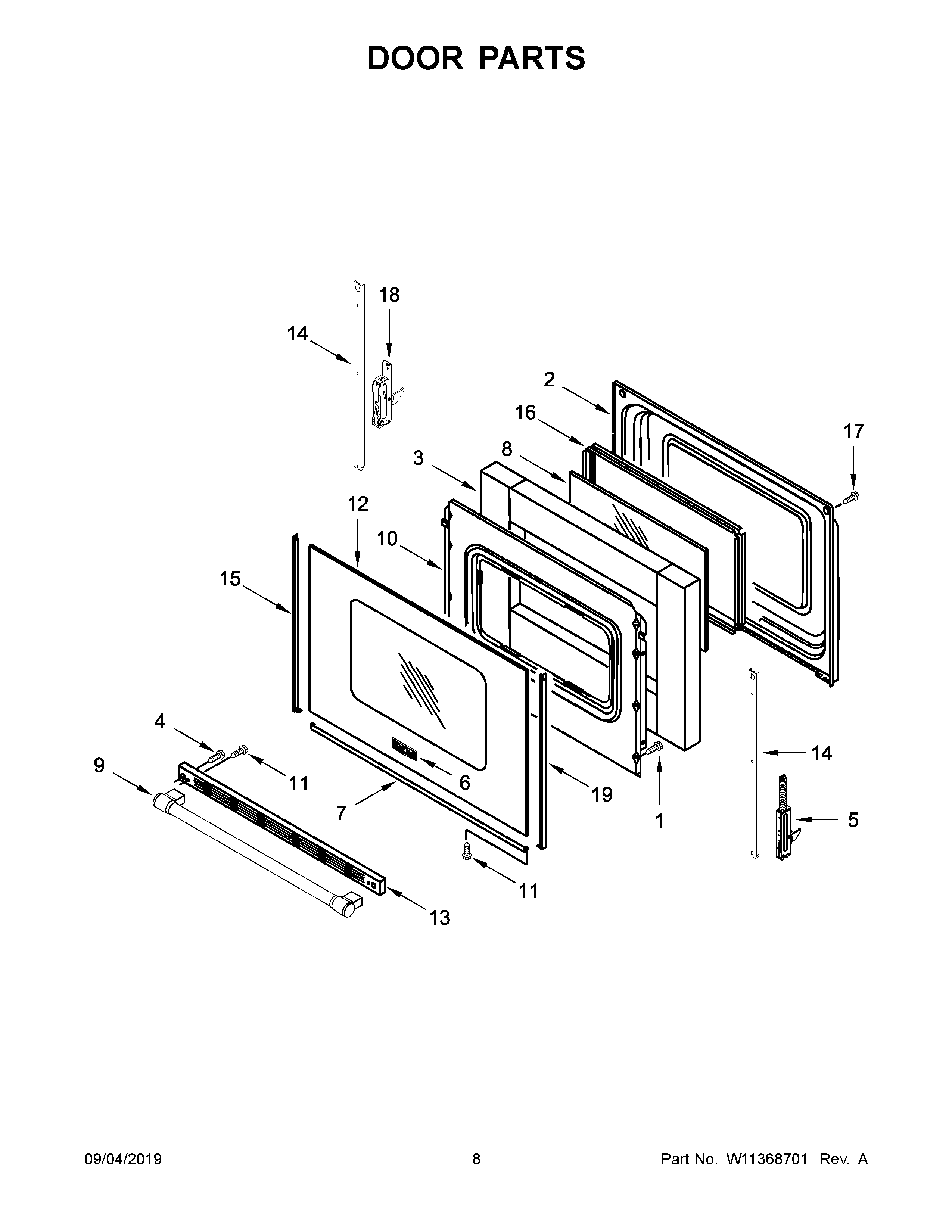

YMER6600FB2 05 – DOOR PARTS

Products

PositionProduct
1SCREW
2LINER, DOOR
3INSULATION, DOOR STRIP
4SCREW
5HINGE, ACTIVE
6BADGE
7TRIM, LOWER (BLACK)
8GLASS, INNER
9HANDLE, OVEN DOOR (BLACK)
10RETAINER, INSULATION
11SCREW
12GLASS, OUTER DOOR (BLACK)
13MAY W10875233
14STRAP, DOOR
15TRIM, SIDE (BLACK (LEFT))
16FRAME, GLASS
17SCREW
18HINGE, DOOR (PASSIVE)
19TRIM, SIDE (BLACK (RIGHT))
