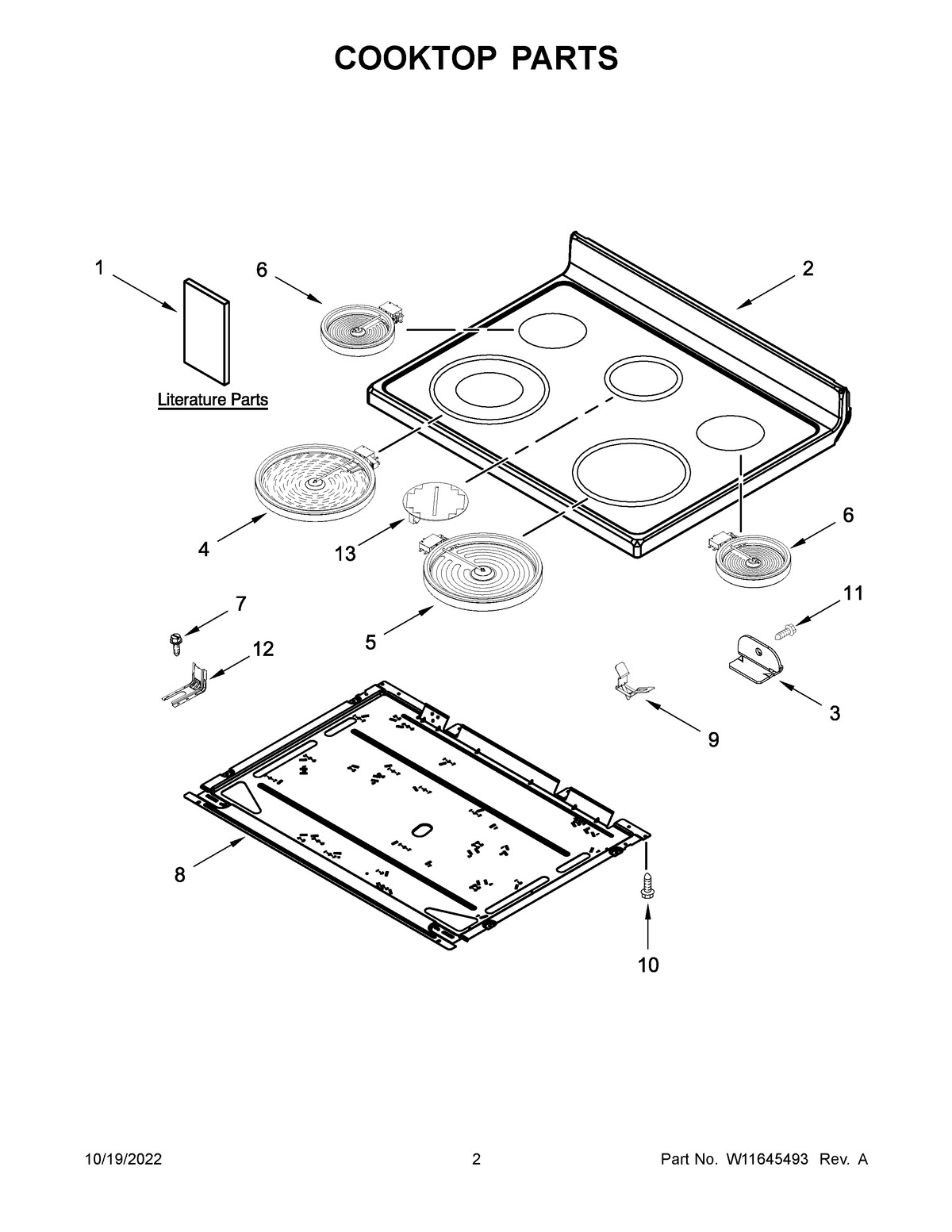

YMER6600FB5 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	W11172528 Whirlpool Harness Wire
NI	HARNESS, WARM ZONE
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNERS MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	W11091927 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W11047722 Whirlpool Radiant Surface Element
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW
12	W11447673 Whirlpool Range Tip Anchor
13	W11041453 Whirlpool Surface Element
