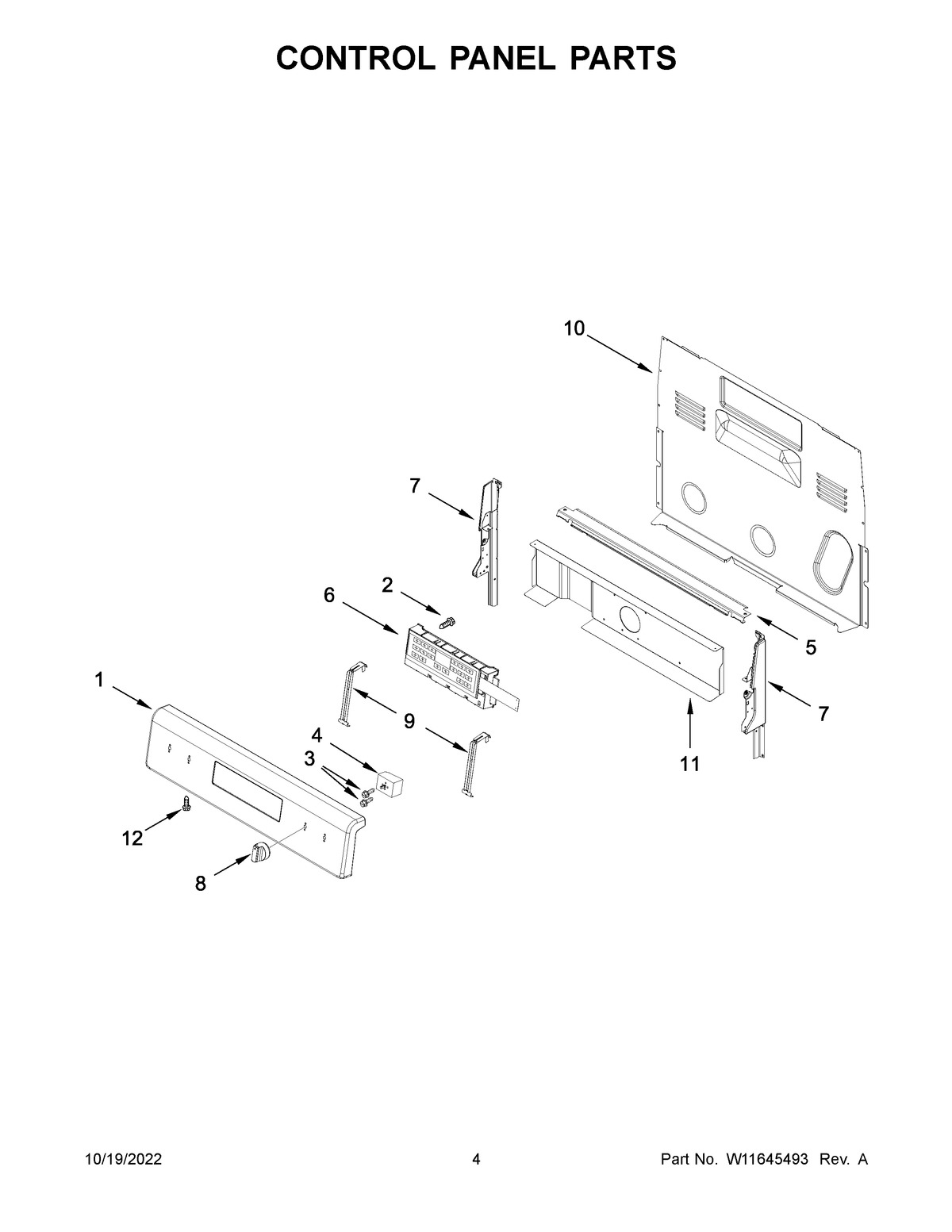

YMER6600FB5 03 – CONTROL PANEL PARTS

YMER6600FB5 03 – CONTROL PANEL PARTS

Written by

in

YMER6600FB5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11092070 Whirlpool Control Panel
2SCREW
3WP3400882 Whirlpool Screw
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4BWP3149400 Whirlpool Oven Infinite Switch
5W10525121 Whirlpool Control Bracket
6W11602268-includeCORE Whirlpool W11602268 Electronic Control Board
7AW11219665 Whirlpool Panel Endcap
7W11219664 Whirlpool Endcap Panel
8W11092475 Whirlpool Knob
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12WP3196175 Whirlpool Screw
