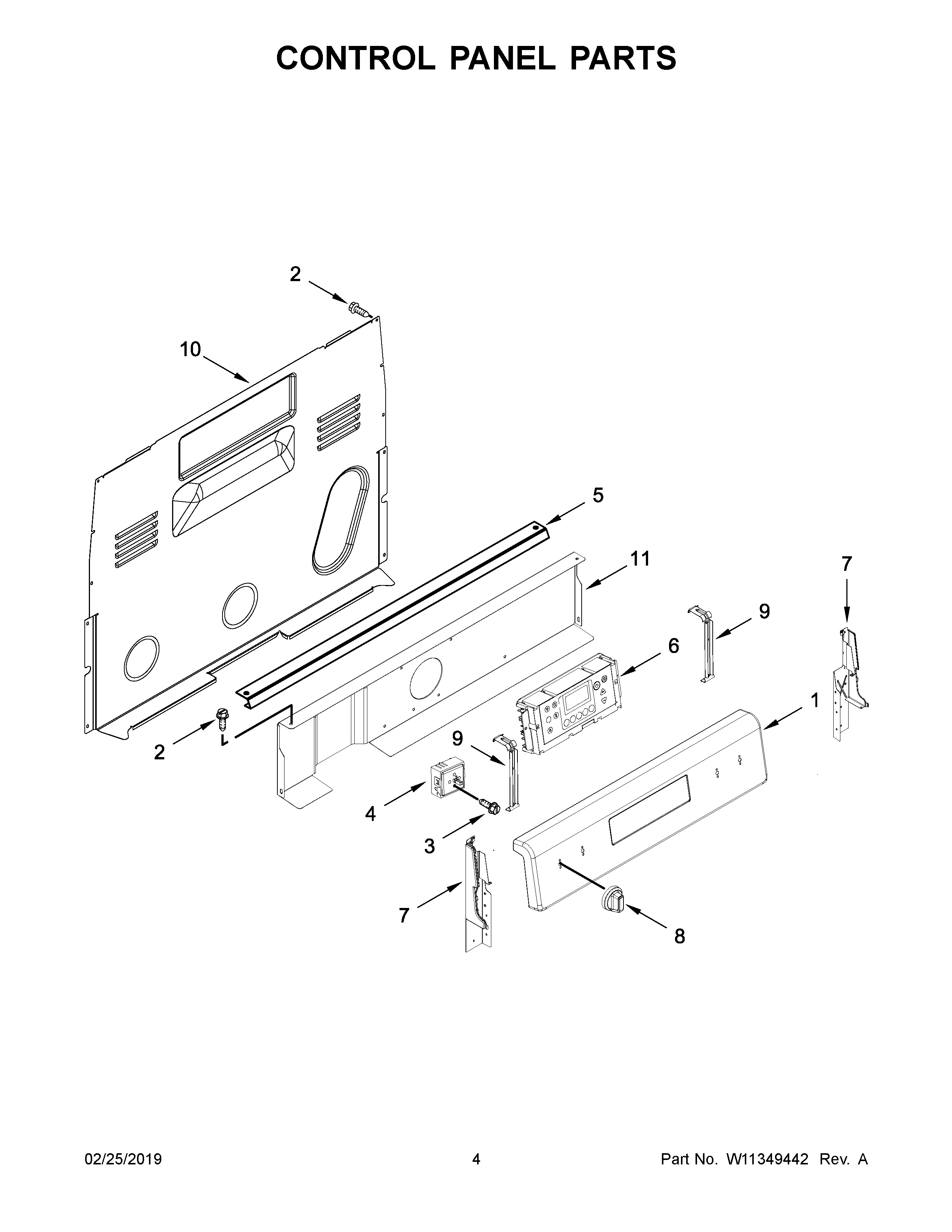

YMER6600FW2 03 – CONTROL PANEL PARTS

YMER6600FW2 03 – CONTROL PANEL PARTS

Written by

in

YMER6600FW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10885608
2SCREW
3SCREW
4BSWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5BRACKET, CONSOLE MOUNTING
6BOARD, CONTROL (WHITE)
7AENDCAP (WHITE (RIGHT))
7ENDCAP (WHITE (LEFT))
8MAY W10892250
9BRACKET, CONTROL
10COVER, UPPER REAR
11SHIELD, HEAT
