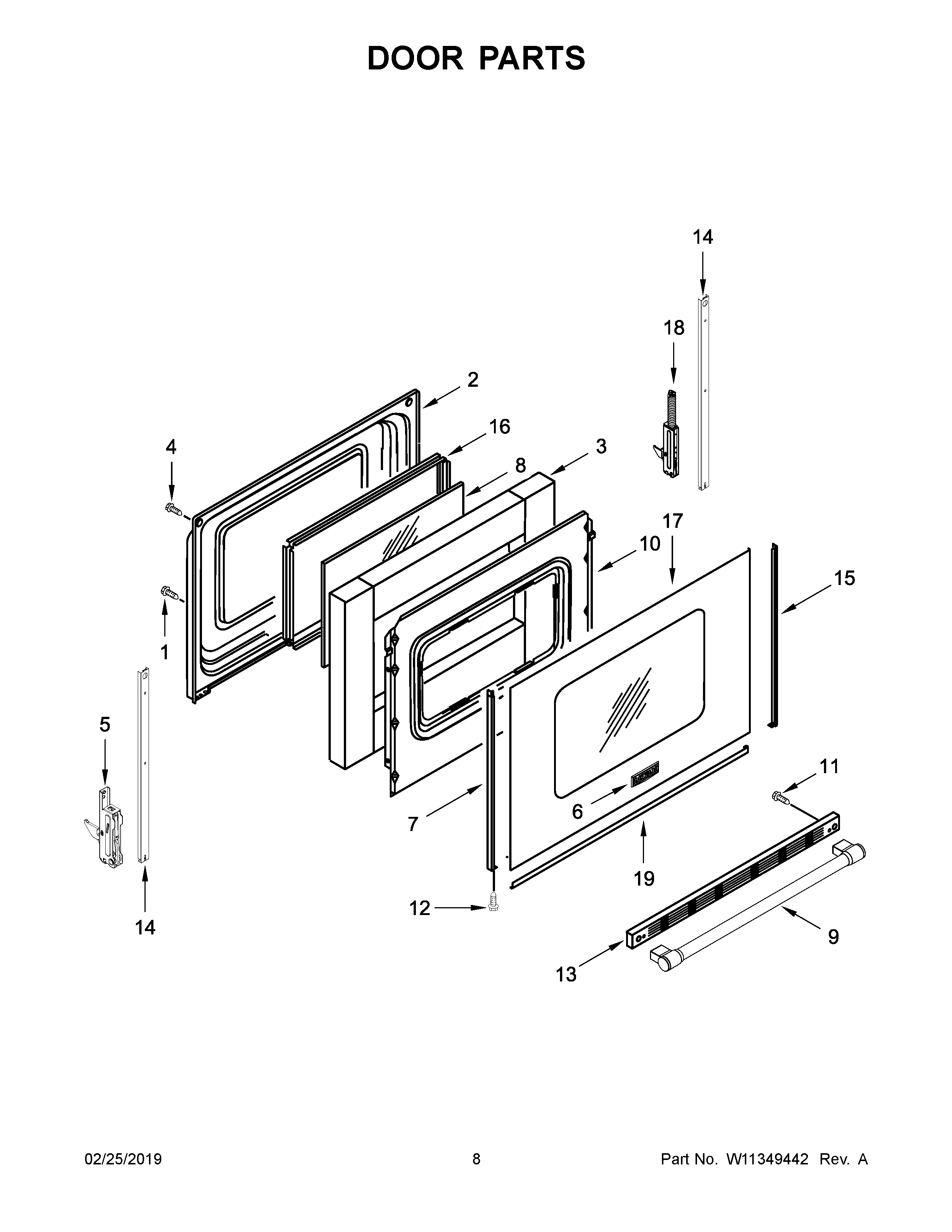

YMER6600FW2 05 – DOOR PARTS

Products

PositionProduct
1SCREW
2LINER, DOOR
3INSULATION, DOOR STRIP
4SCREW
5HINGE, DOOR (PASSIVE)
6BADGE
7TRIM, SIDE (WHITE (RIGHT))
8GLASS, INNER
9HANDLE, OVEN DOOR (WHITE)
10RETAINER, INSULATION
11SCREW
12SCREW
13MAY W10875232
14STRAP, DOOR
15TRIM, SIDE (WHITE (LEFT))
16FRAME, GLASS
17GLASS, OUTER DOOR (WHITE)
18HINGE, ACTIVE
19TRIM, LOWER (WHITE)
