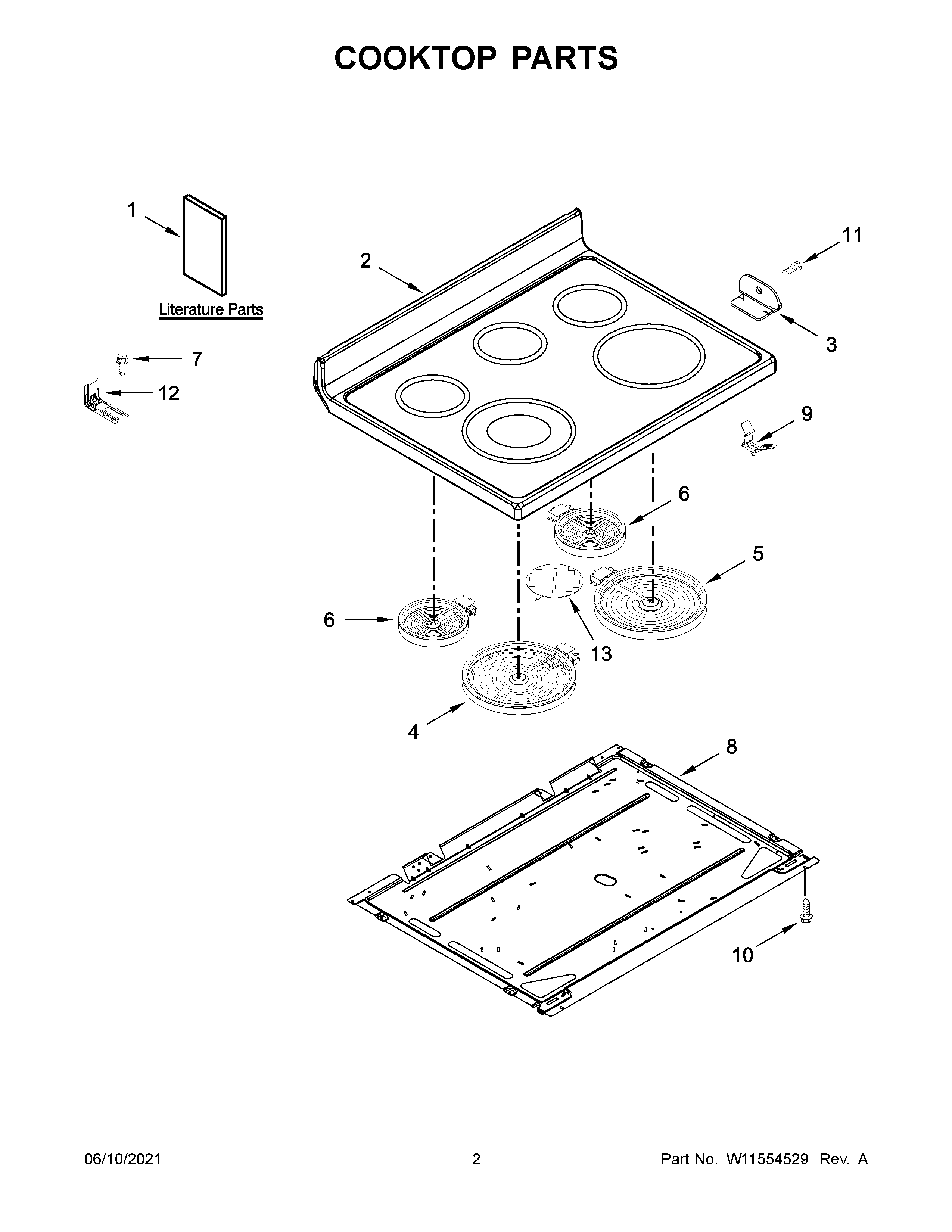

YMER6600FW3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11172528 Whirlpool Harness Wire
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	WPW10281322 Whirlpool Connector
1A	USE AND CARE GUIDE (FRENCH)
1B	INSTRUCTIONS, INSTALLATION
1C	TECH SHEET
1	USE AND CARE GUIDE (ENGLISH)
2	W11091928 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W11047722 Whirlpool Radiant Surface Element
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW
12	W11447673 Whirlpool Range Tip Anchor
13	W11041453 Whirlpool Surface Element
