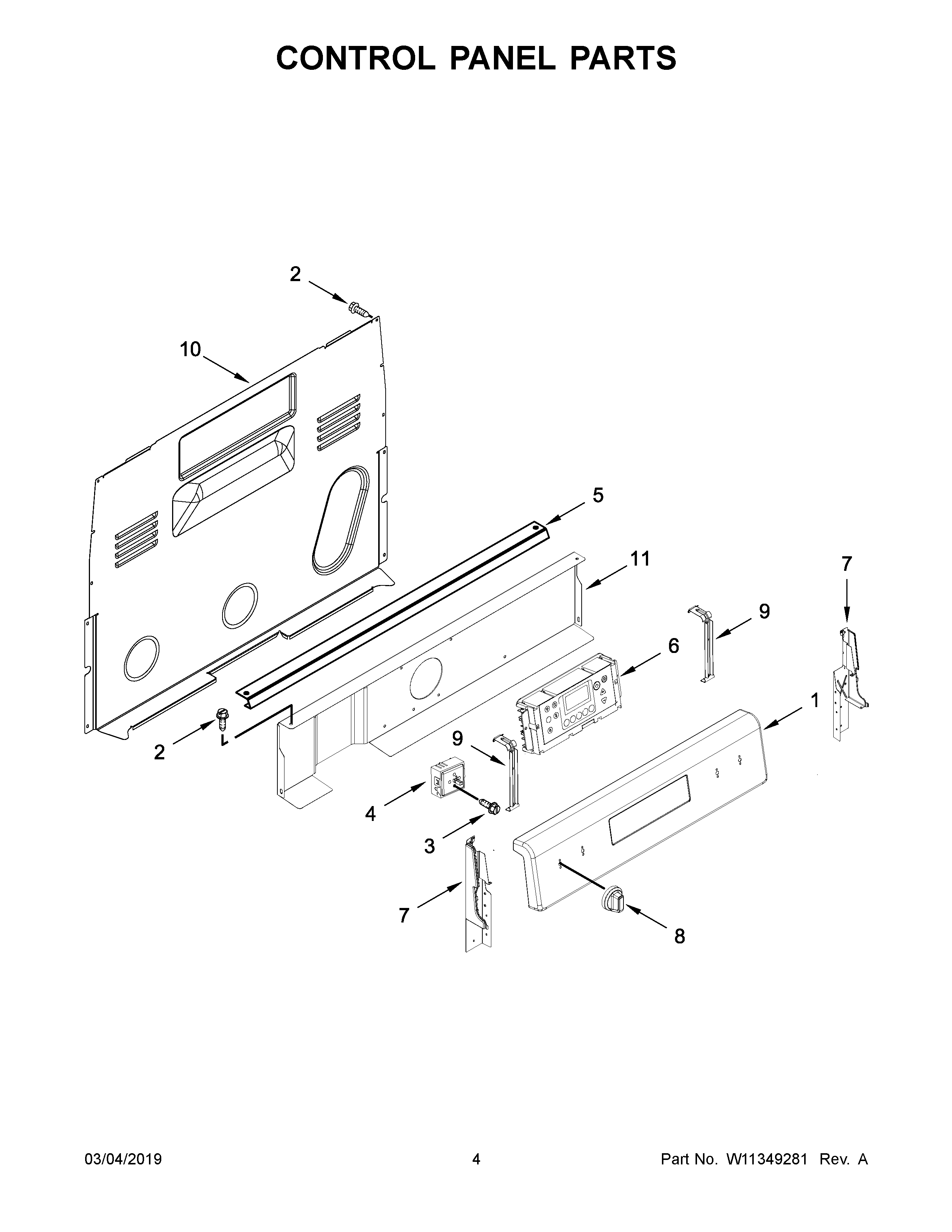

YMER6600FZ2 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	MAY W10885607
2	SCREW
3	SCREW
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4B	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
5	BRACKET, CONSOLE MOUNTING
6	BOARD, CONTROL (BLACK)
7A	ENDCAP (BLACK (RIGHT))
7	ENDCAP (BLACK (LEFT))
8	MAY W10858250
9	BRACKET, CONTROL
10	COVER, UPPER REAR
11	SHIELD, HEAT
