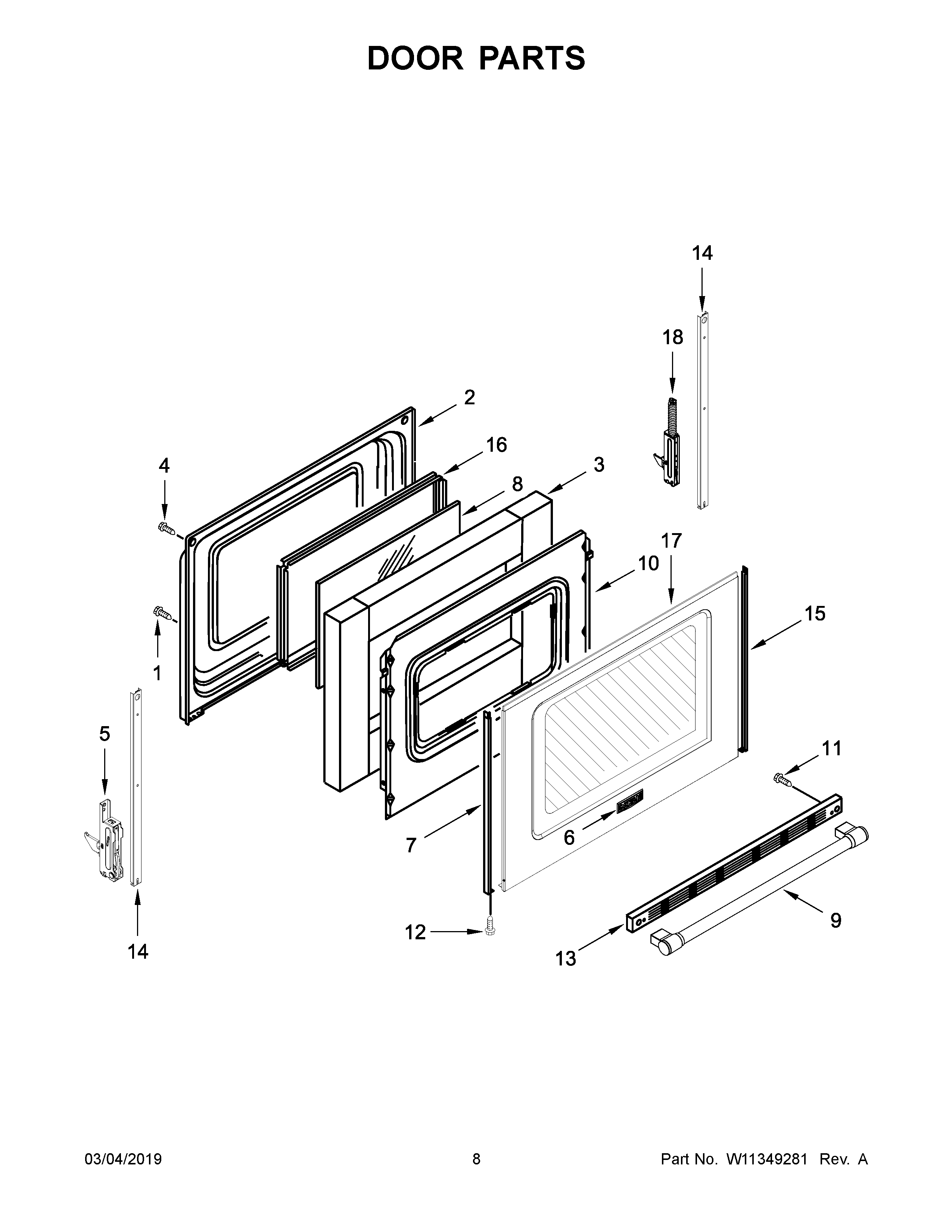

YMER6600FZ2 05 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (PASSIVE)
6	BADGE
7	TRIM, SIDE (BLACK (LEFT))
8	GLASS, INNER
9	HANDLE, OVEN DOOR (STAINLESS)
10	RETAINER, INSULATION
11	SCREW
12	SCREW
13	MAY W11047800
14	STRAP, DOOR
15	TRIM, SIDE (BLACK (RIGHT))
16	FRAME, GLASS
17	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
18	HINGE, ACTIVE (WITH SPRING)
