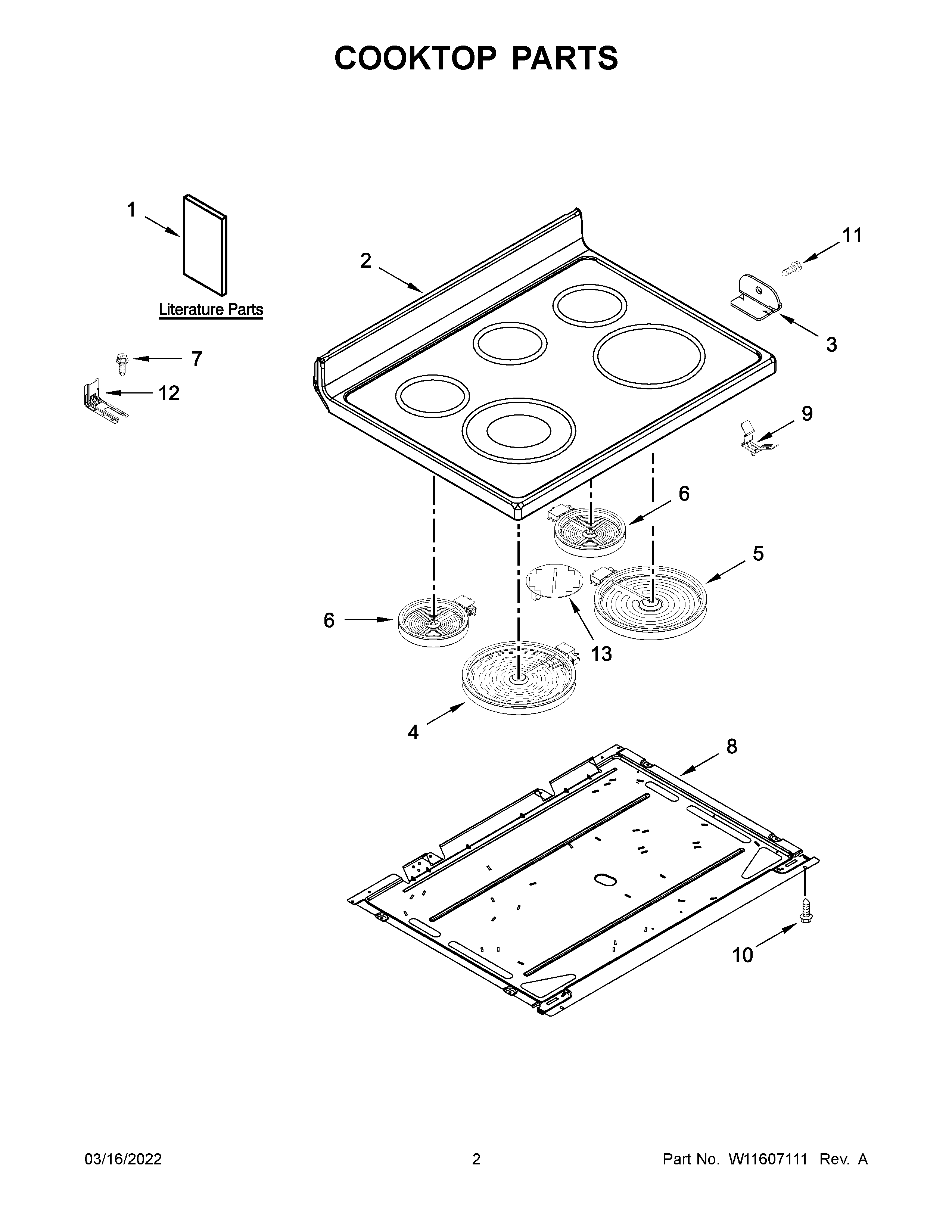

YMER6600FZ5 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	W11172528 Whirlpool Harness Wire
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNERS MANUAL
1A	QUICK START GUIDE
1B	TECH SHEET
2	W11091927 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W11047722 Whirlpool Radiant Surface Element
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW
12	W11447673 Whirlpool Range Tip Anchor
13	W11041453 Whirlpool Surface Element
