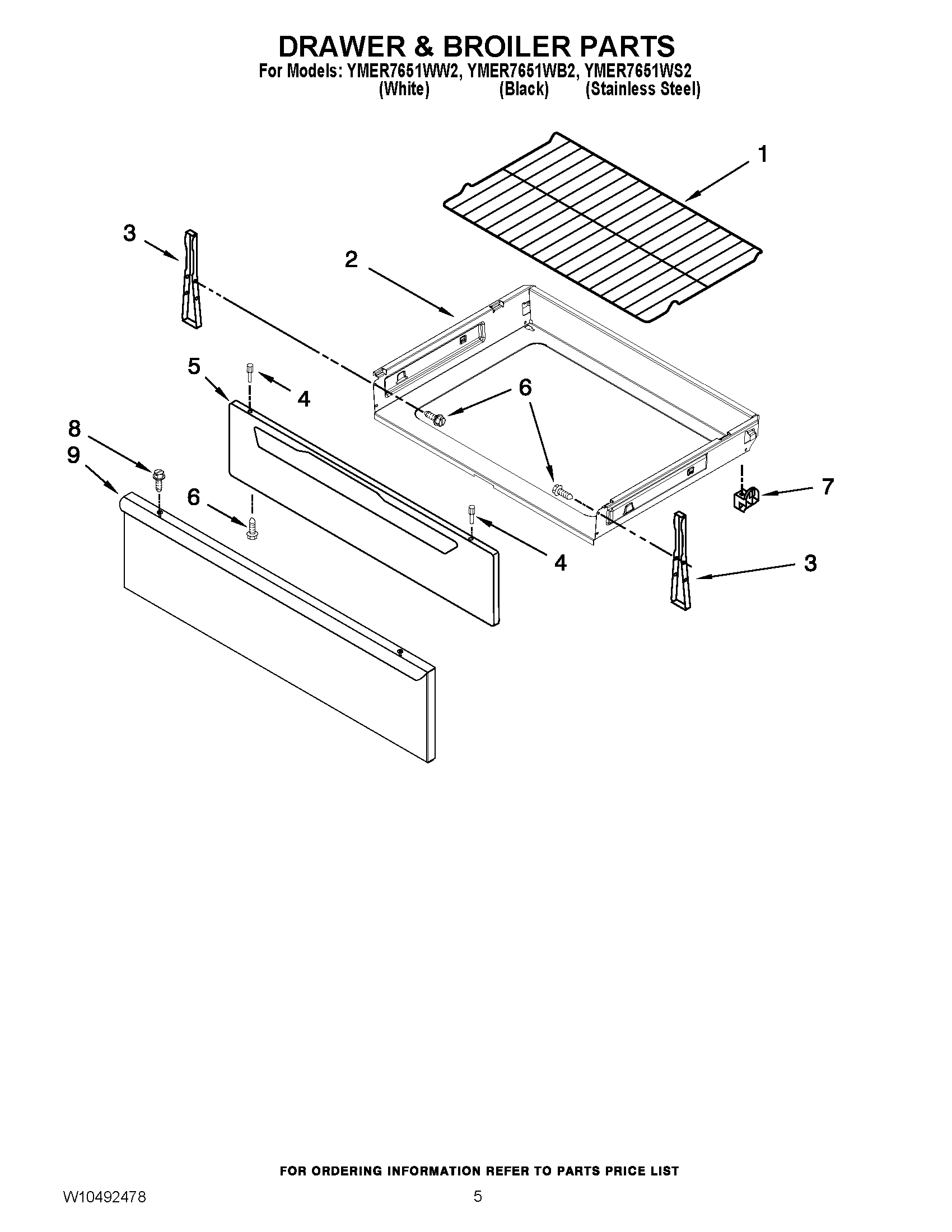

YMER7651WS2 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER FRONT (BLACK)
6SCREW
7GLIDE, REAR DRAWER
8SCREW
9PANEL, DRAWER (SS MODEL)
