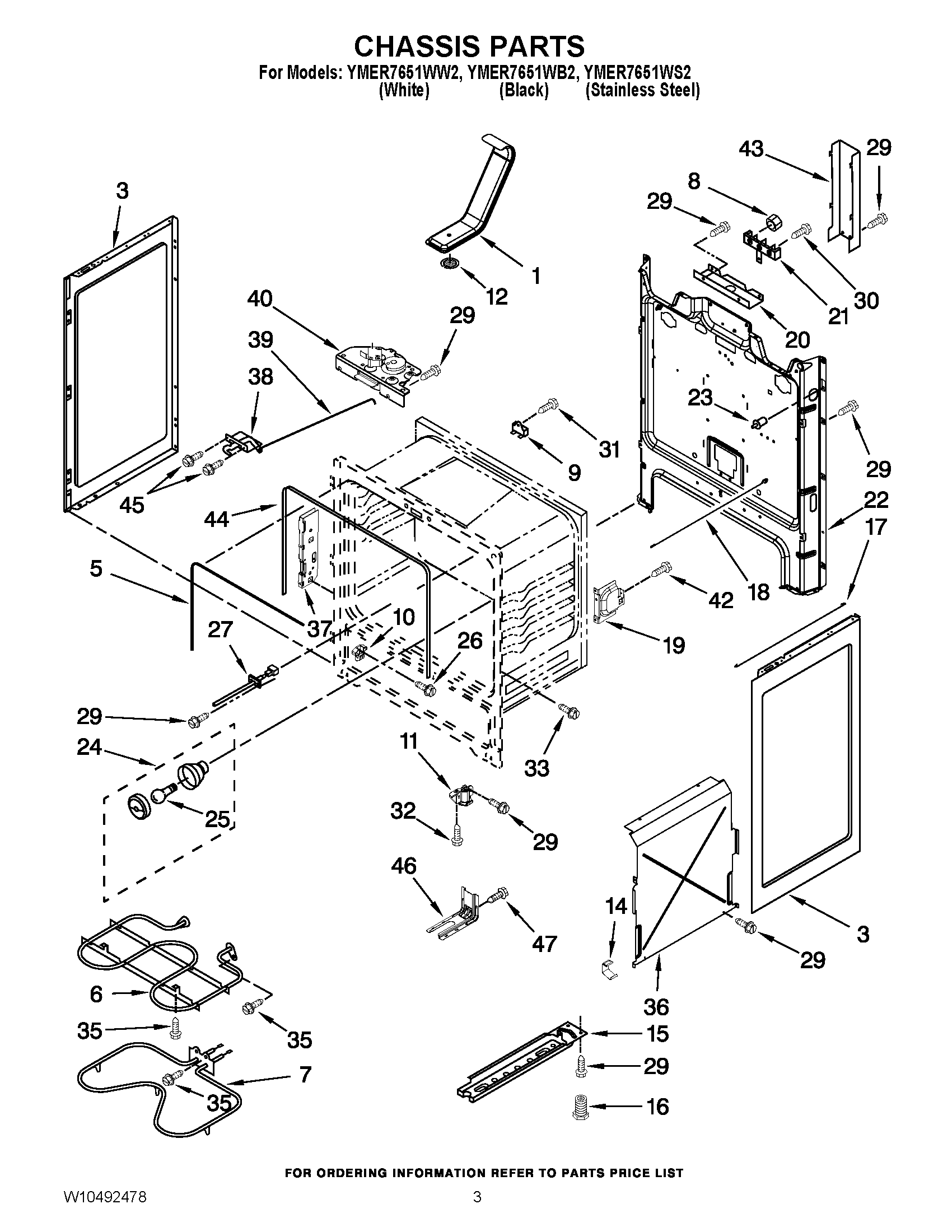

YMER7651WW2 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, FLUE
NI	RETAINER, INSULATION
NI	MAY W10208653
1	TUBE, VENT
3	MAY W10322769
3	MAY W10322770
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	GLIDE, DRAWER
11	ASSEMBLY, FRONT FOOT
12	MAY 9761301
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	ROD, INSULATION RETAINER
18	ROD, DOOR SWITCH
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
29	SCREW
30	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
35	SCREW
36	RETAINER, INSULATION
37	RECEIVER, HINGE
38	ASSEMBLY, DOOR LATCH (FRONT)
39	ROD, LATCH
40	ASSEMBLY, LATCH (REAR)
42	SCREW
43	COVER, TERMINAL BLOCK
44	OVEN SEAL, FLANGE
45	SCREW
46	BRACKET, ANTI-TIP
47	SCREW, ANTI-TIP KIT
