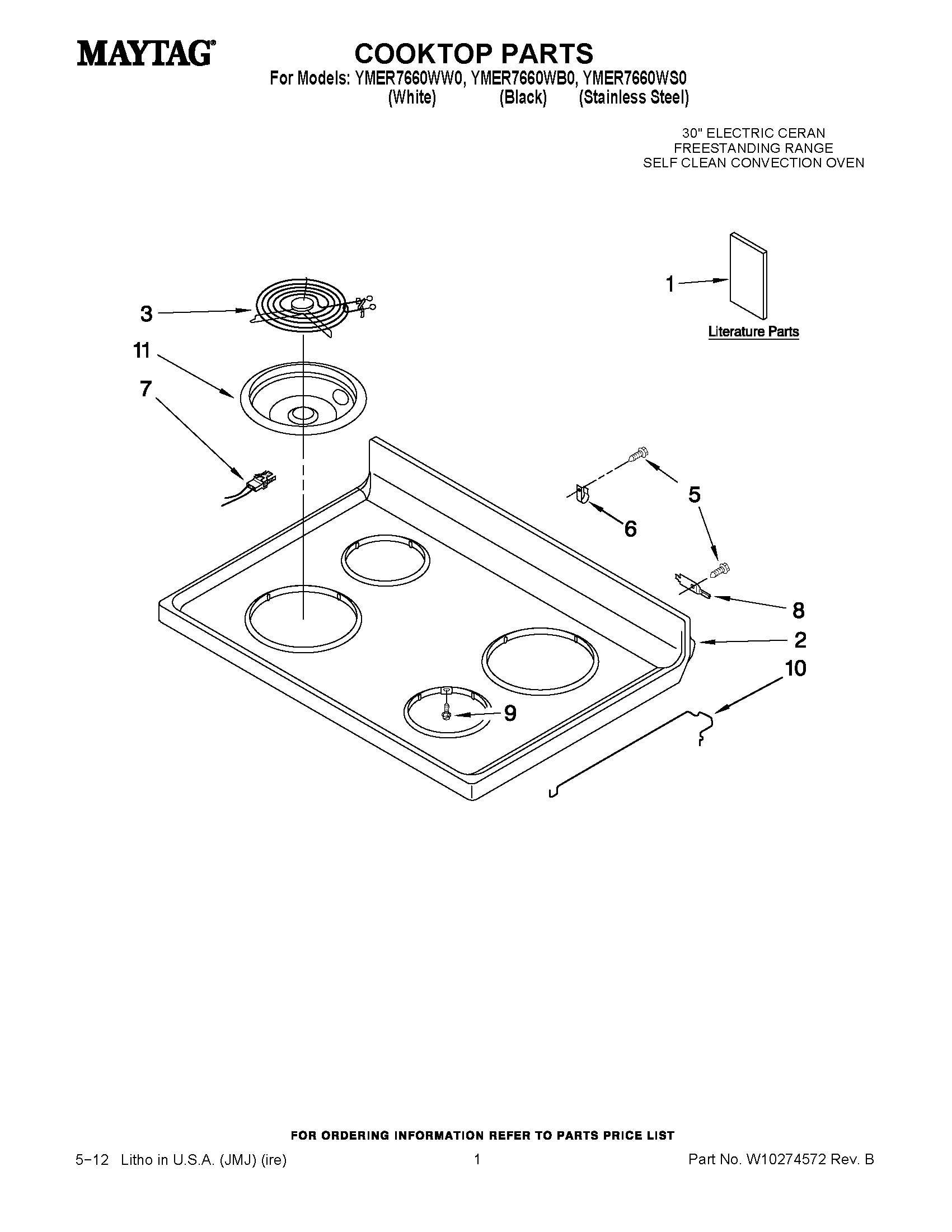

YMER7660WS0 01 – COOKTOP PARTS

YMER7660WS0 01 – COOKTOP PARTS

Written by

in

YMER7660WS0 01 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TIPS, SAFE COOKING (ENGLISH)
1Template, Anti-Tip (English/French)
1OWNER`S MANUAL TECH SHEET
1TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1TECH SHEET
2COOKTOP (WHITE)
2COOKTOP (BLACK)
3ELEMENT, SURFACE (8“ ELEMENT)
3ELEMENT, SURFACE (6“ ELEMENT)
5SCREW
6Strain Relief
7RECEPTACLE, ELEMENT
8HINGE, COOKTOP
9SCREW
10ROD, SUPPORT
11BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
11BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
