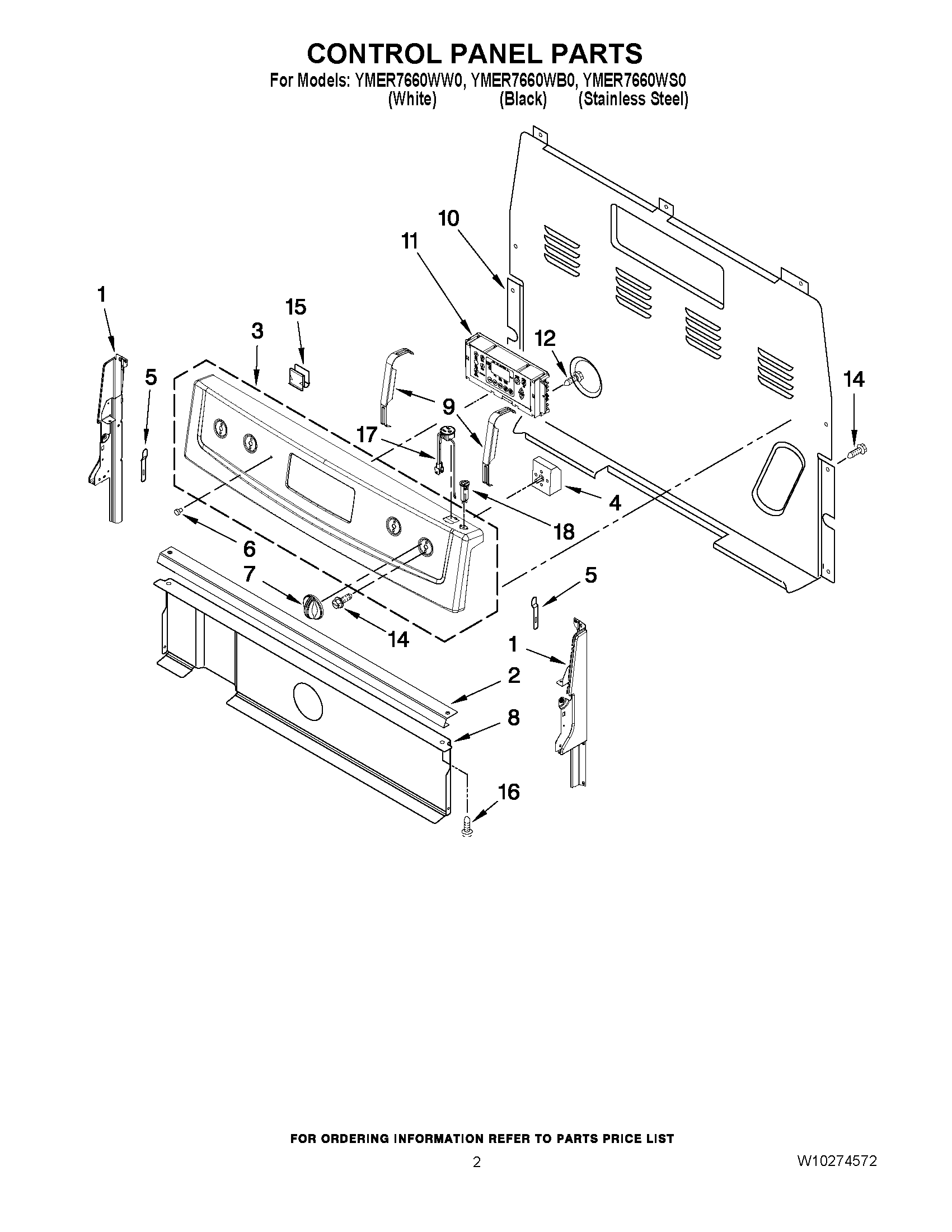

YMER7660WS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2Bracket, Console
3MAY W10292018
3MAY W10292019
3MAY W10292017
4SWITCH, INFINITE (LEFT-FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5CLIP, SPRING
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (WHITE)
8MAY 8053912
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11MAY W10236242
11MAY W10236244
12SCREW
14SCREW
15MAY 8273564
16Screw (Black)
16Screw (White)
17RECEPTACLE (WHITE)
17RECEPTACLE (BLACK)
18BREAKER, CIRCUIT (WHITE)
18BREAKER, CIRCUIT (BLACK)
