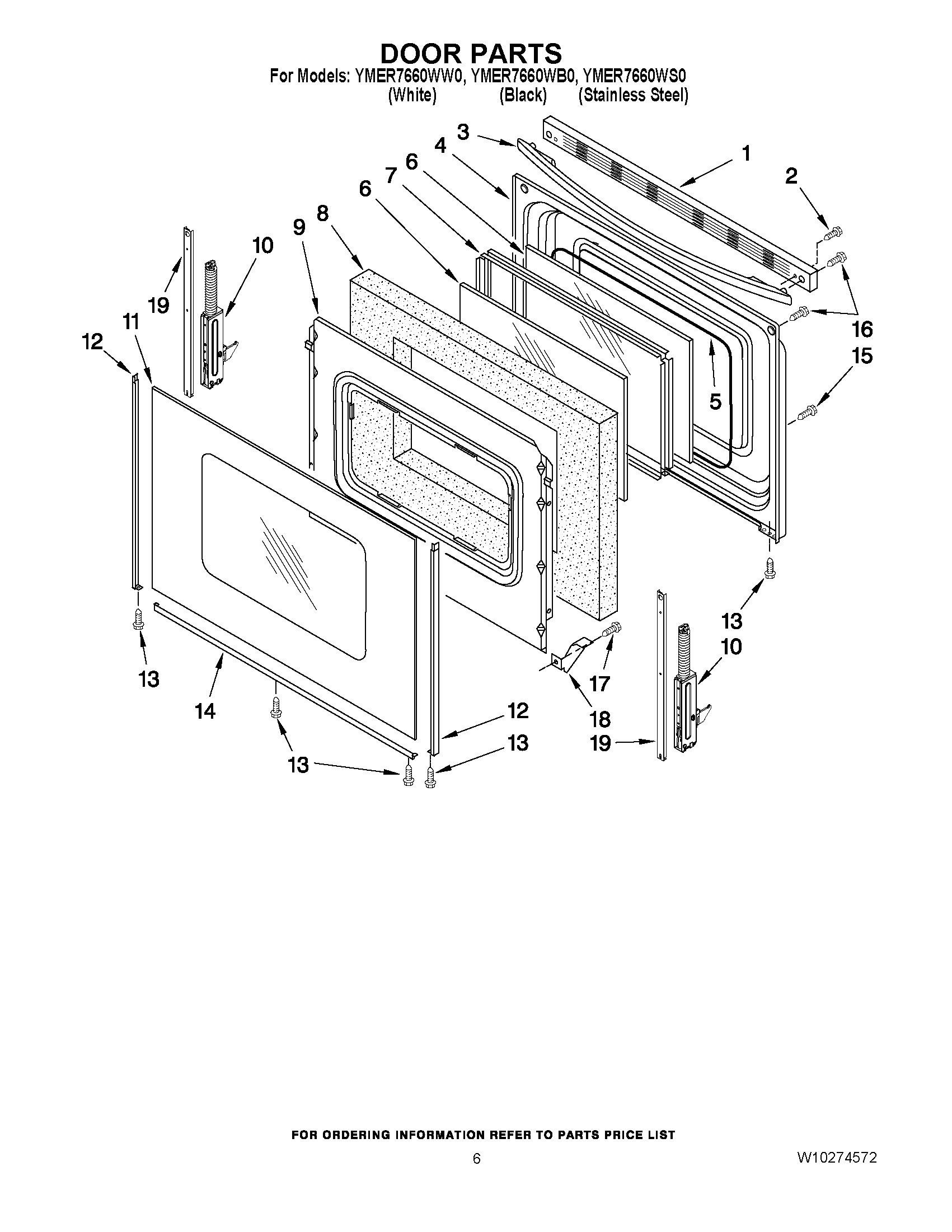

YMER7660WS0 05 – DOOR PARTS

YMER7660WS0 05 – DOOR PARTS

Written by

in

YMER7660WS0 05 – DOOR PARTS

Products

PositionProduct
1MAY W10144869
1Trim, Top (Black)
2SCREW
3MAY W10111309
3MAY W10111310
4LINER, DOOR
5MAY W10238912
6GLASS, INNER
7MAY 3186289
8MAY 8272618
9RETAINER, INSULATION
10Hinge, Door
11MAY W10106405
11GLASS, OUTER (STAINLESS)
11GLASS, OUTER (WHITE)
12TRIM SIDE (STAINLESS RH)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM SIDE (STAINLESS LH)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14TRIM, LOWER (WHITE)
14TRIM, LOWER (BLACK)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
19STRAP, DOOR
