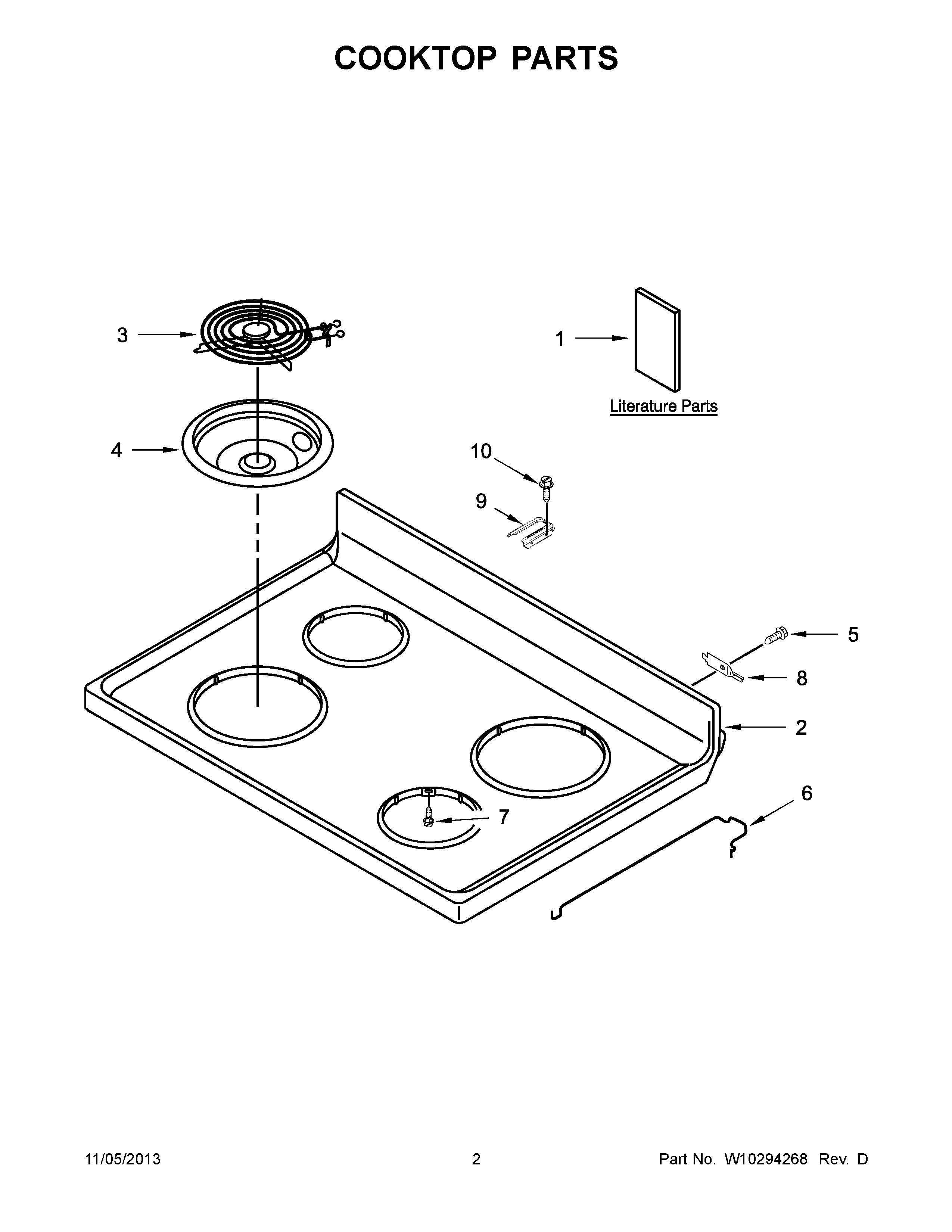

YMER7660WS1 02 – COOKTOP PARTS

Products

Position	Product
1	Template, Anti-Tip (English/French)
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	SHEET, TECH (FRENCH)
1	SHEET, TECH (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
1	OWNER`S MANUAL TECH SHEET
2	COOKTOP (WHITE)
2	COOKTOP (BLACK)
3	ELEMENT (8“)
3	ELEMENT (6“)
4	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
4	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
5	SCREW
6	ROD, SUPPORT
7	SCREW
8	HINGE, COOKTOP
9	MAY 3192830
10	MAY 3148604
