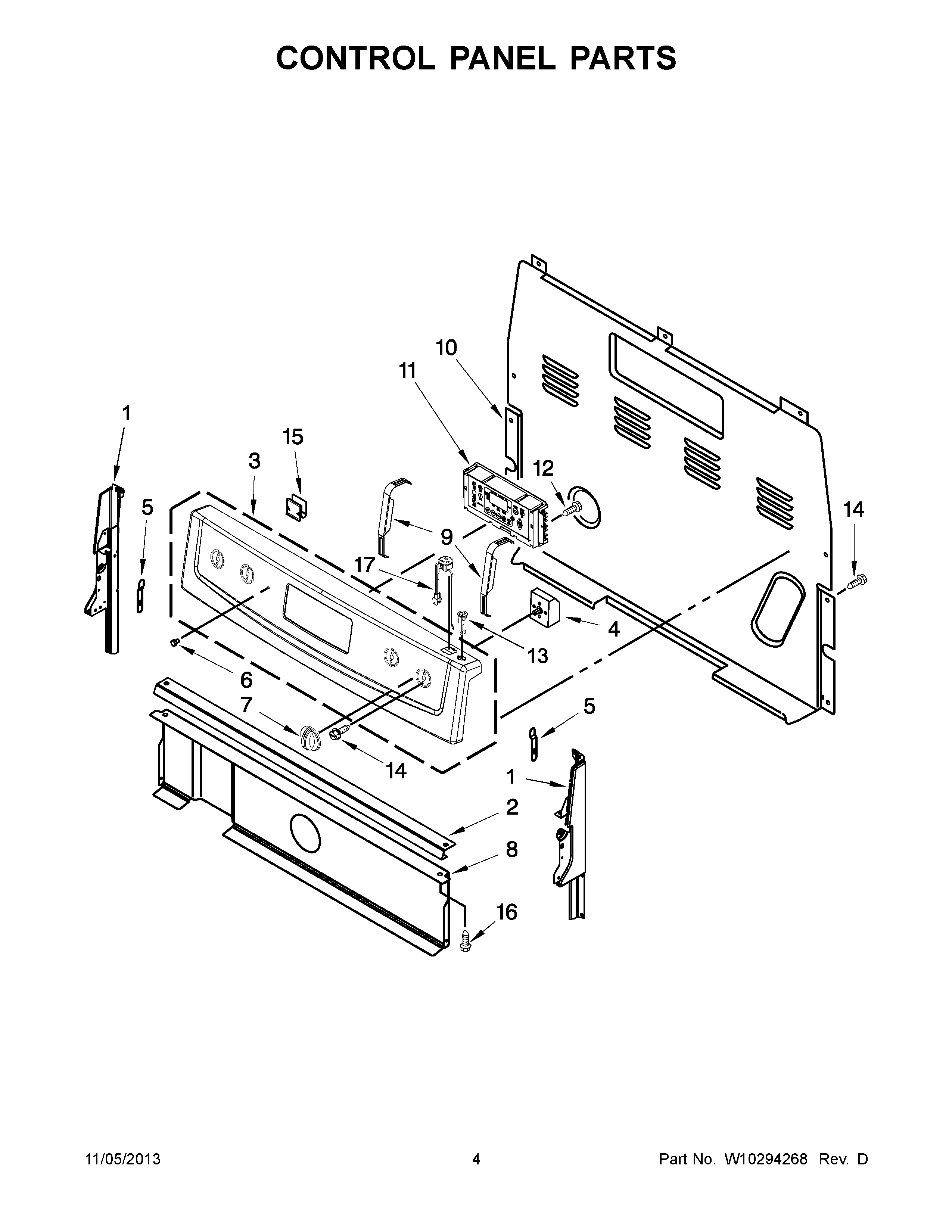

YMER7660WS1 03 – CONTROL PANEL PARTSadmin2025-04-26T08:54:38+00:00YMER7660WS1 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 2 | BRACKET, CONSOLE MOUNTING |
| 3 | MAY W10292019 |
| 3 | MAY W10292017 |
| 4 | SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR) |
| 5 | CLIP, SPRING |
| 6 | MAY 3196068 |
| 7 | KNOB, INFINITE (WHITE) |
| 7 | MAY W10211372 |
| 8 | SHIELD, HEAT |
| 9 | MAY W10324410 |
| 10 | COVER, UPPER REAR |
| 11 | CONTROL, RANGE (BLACK (LCC 95)) |
| 11 | MAY W10476675 |
| 12 | SCREW |
| 13 | BREAKER, CIRCUIT (BLACK) |
| 13 | BREAKER, CIRCUIT (WHITE) |
| 14 | SCREW |
| 15 | MAY 8273564 |
| 16 | Screw (White) |
| 17 | RECEPTACLE (WHITE) |
| 17 | RECEPTACLE (BLACK) |
