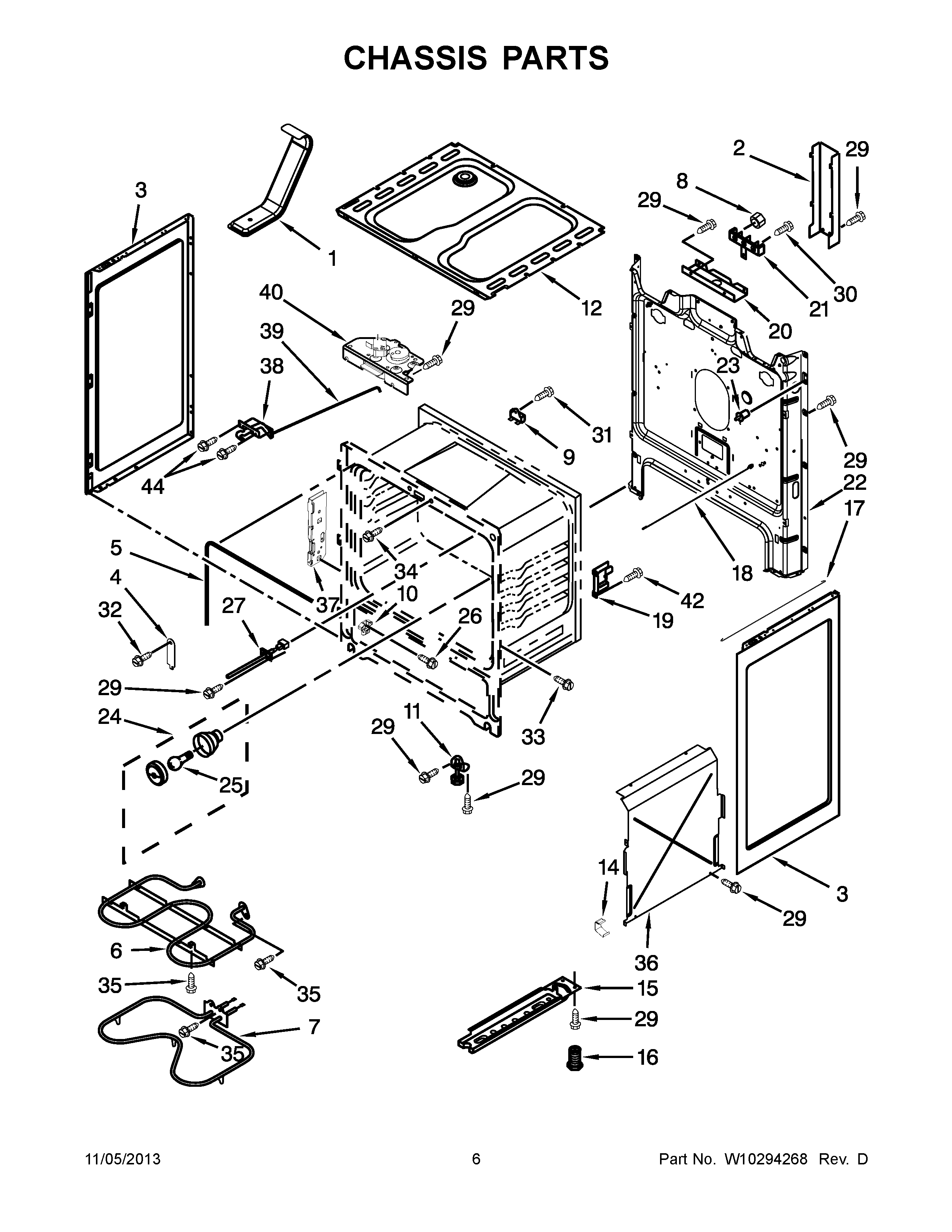

YMER7660WS1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	RETAINER, INSULATION
NI	MAY W10208653
1	VENT TUBE
2	COVER, TERMINAL BLOCK
3	MAY W10322769
3	MAY W10322770
4	SCREW
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	Glide, Drawer
11	ASSEMBLY, FRONT FOOT
12	BOX, BURNER
13	ASSEMBLY, DOOR LATCH (REAR)
14	CLIP, PANEL
15	RAIL, BASE
16	FOOT, LEVELING
17	ROD, INSULATION RETAINER
18	ROD, DOOR SWITCH
19	ROD, LATCH
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
28	ASSEMBLY, DOOR LATCH (FRONT)
29	SCREW
30	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
34	Screw (Black)
35	SCREW
36	RETAINER, INSULATION
