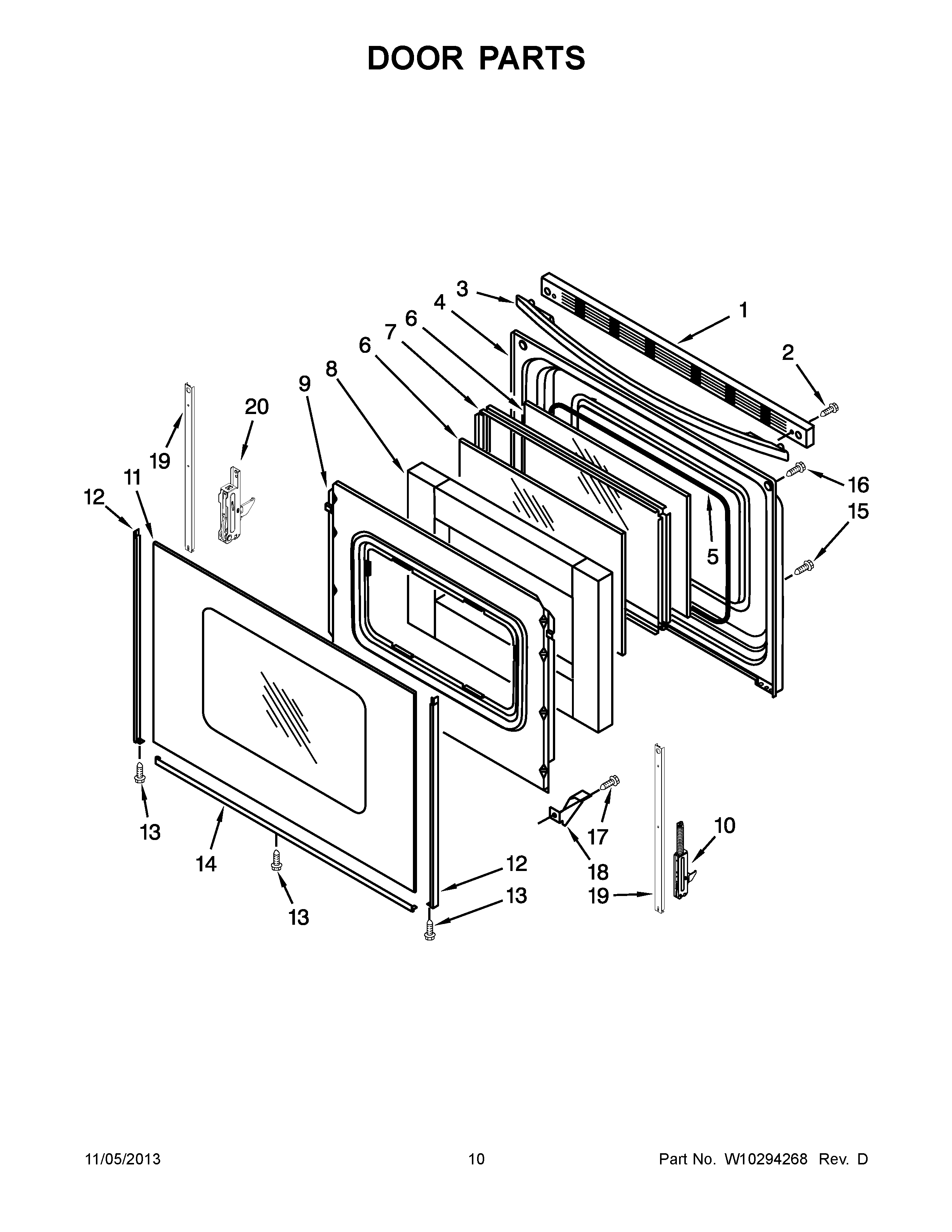

YMER7660WS1 06 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323581
3MAY W10171750
4LINER, DOOR
5STRAP, DOOR
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10Hinge, Door
11GLASS, OUTER (STAINLESS)
11GLASS, OUTER (WHITE)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
13MAY 3196160
14TRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
