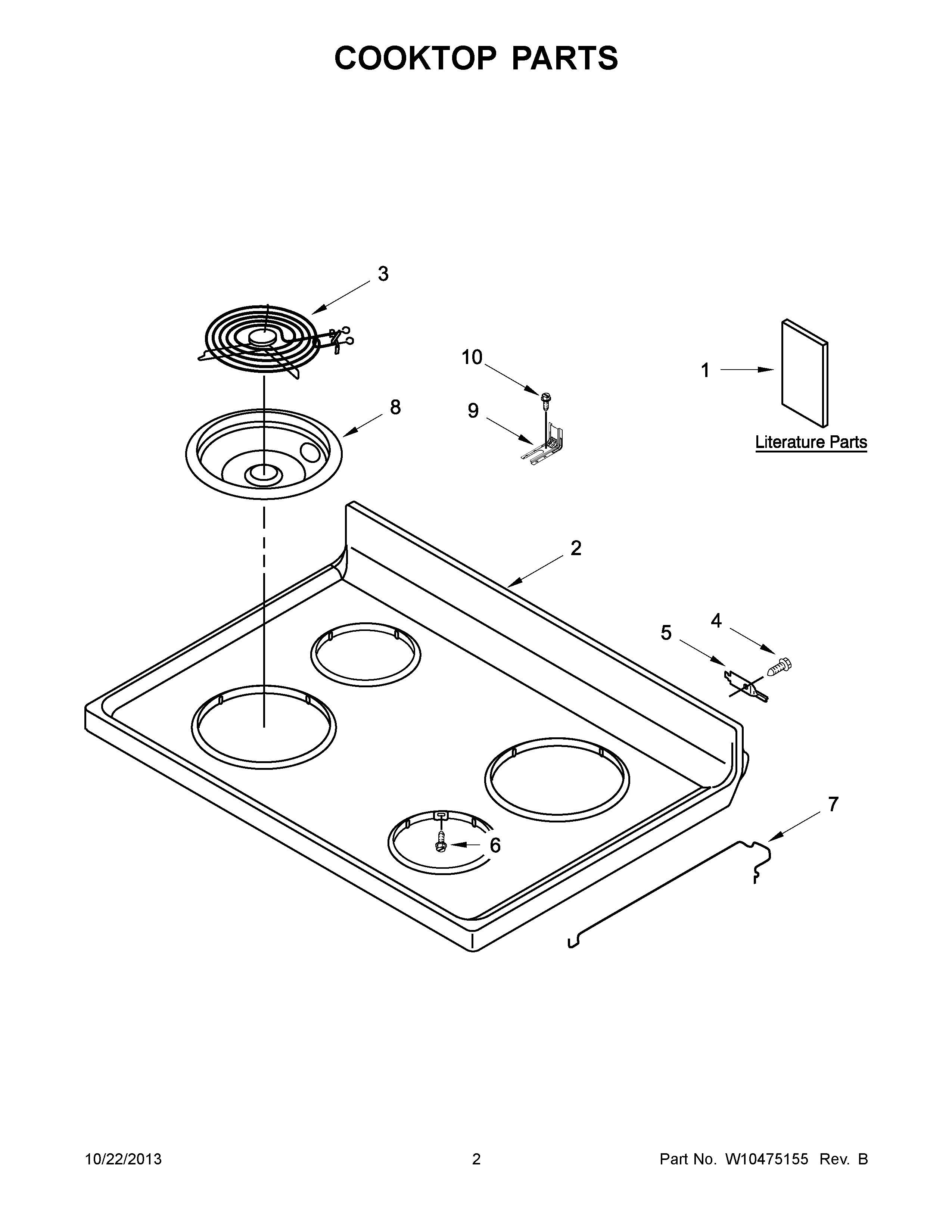

YMER7660WS2 02 – COOKTOP PARTS

Products

Position	Product
1	USER INSTRUCTIONS
1	SHEET, TECH (ENGLISH)
1	SHEET, TECH (FRENCH)
1	MAY W10403812
1	TIPS, SAFE COOKING (FRENCH)
1	TIPS, SAFE COOKING (ENGLISH)
2	COOKTOP (BLACK)
2	COOKTOP (WHITE)
3	ELEMENT (6“)
3	ELEMENT (8“)
4	MAY 4449154
5	HINGE, COOKTOP
6	SCREW
7	ROD, SUPPORT
8	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
8	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
9	BRACKET, ANTI-TIP
10	SCREW, ANTI-TIP KIT
