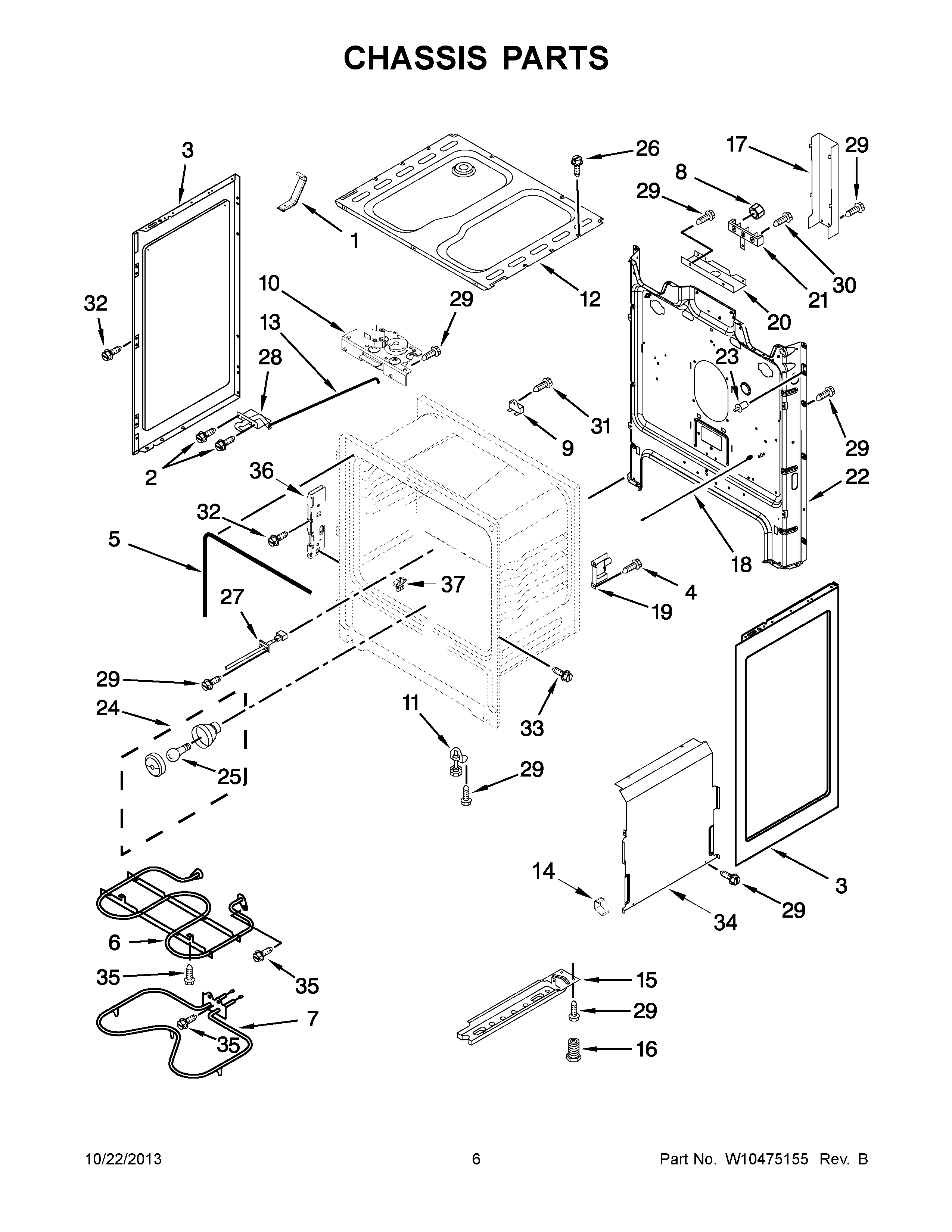

YMER7660WS2 04 – CHASSIS PARTS

Products

Position	Product
NI	RETAINER, INSULATION
NI	MAY W10208653
NI	INSULATION, BACK
1	VENT TUBE
2	SCREW
3	MAY W10322769
3	MAY W10322770
4	SCREW
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	ASSEMBLY, DOOR LATCH (REAR)
11	ASSEMBLY, FRONT FOOT
12	BOX, BURNER
13	ROD, LATCH
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	COVER, TERMINAL BLOCK
18	ROD, DOOR SWITCH
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
28	ASSEMBLY, DOOR LATCH (FRONT)
29	SCREW
30	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
34	MAY W10450380
35	SCREW
36	RECEIVER, HINGE
37	GLIDE, DRAWER
