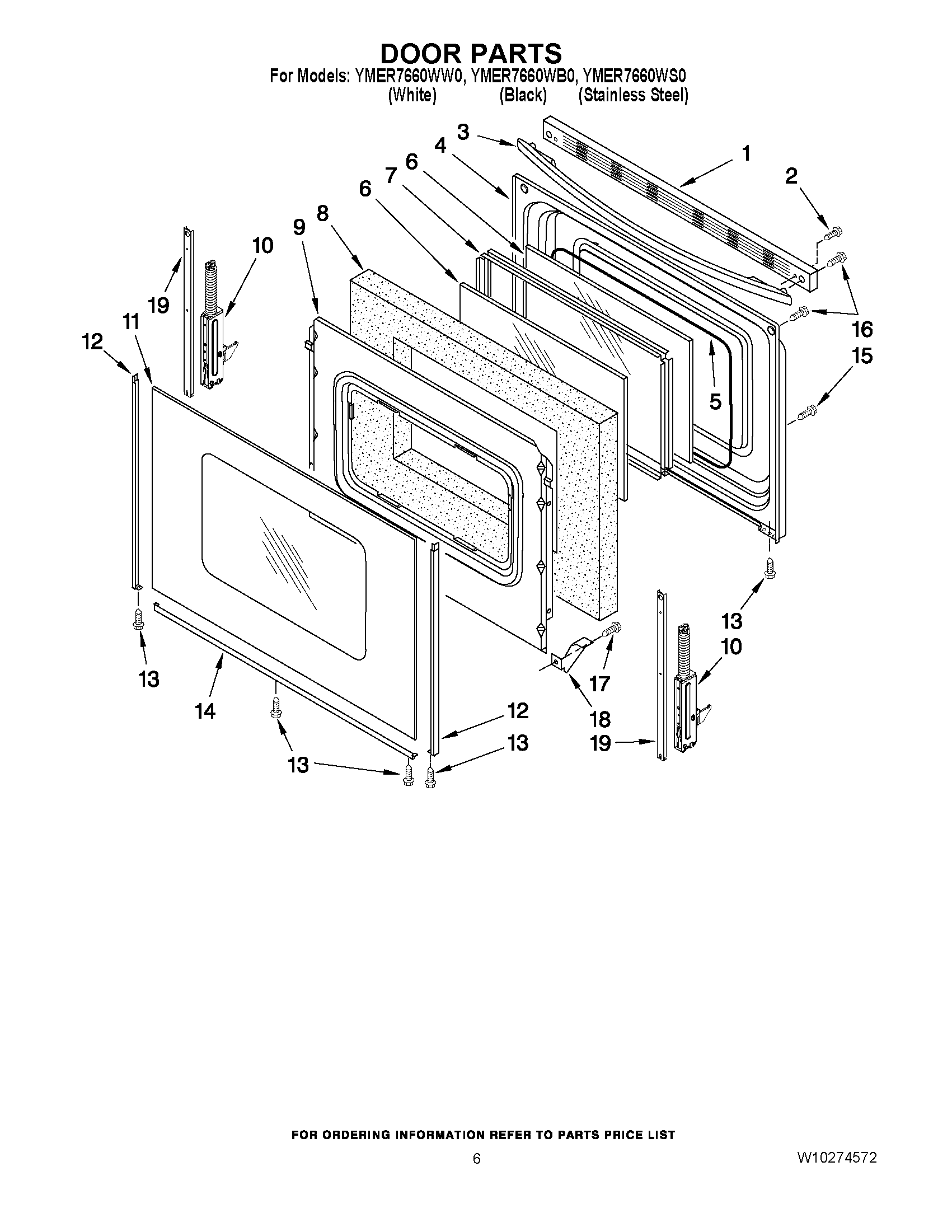

YMER7660WW0 05 – DOOR PARTSadmin2025-04-26T08:54:11+00:00YMER7660WW0 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10144869 |
| 1 | Trim, Top (Black) |
| 2 | SCREW |
| 3 | MAY W10111309 |
| 3 | MAY W10111310 |
| 4 | LINER, DOOR |
| 5 | MAY W10238912 |
| 6 | GLASS, INNER |
| 7 | MAY 3186289 |
| 8 | MAY 8272618 |
| 9 | RETAINER, INSULATION |
| 10 | Hinge, Door |
| 11 | MAY W10106405 |
| 11 | GLASS, OUTER (STAINLESS) |
| 11 | GLASS, OUTER (WHITE) |
| 12 | TRIM SIDE (STAINLESS RH) |
| 12 | TRIM, SIDE (BLACK, RIGHT HAND) |
| 12 | TRIM SIDE (STAINLESS LH) |
| 12 | TRIM, SIDE (BLACK, LEFT HAND) |
| 12 | TRIM, SIDE (WHITE (LEFT)) |
| 12 | TRIM, SIDE (WHITE (RIGHT)) |
| 13 | MAY 3196160 |
| 14 | TRIM, LOWER (WHITE) |
| 14 | TRIM, LOWER (BLACK) |
| 15 | SCREW |
| 16 | MAY W10031780 |
| 17 | SCREW |
| 18 | CLIP, PANEL |
| 19 | STRAP, DOOR |
