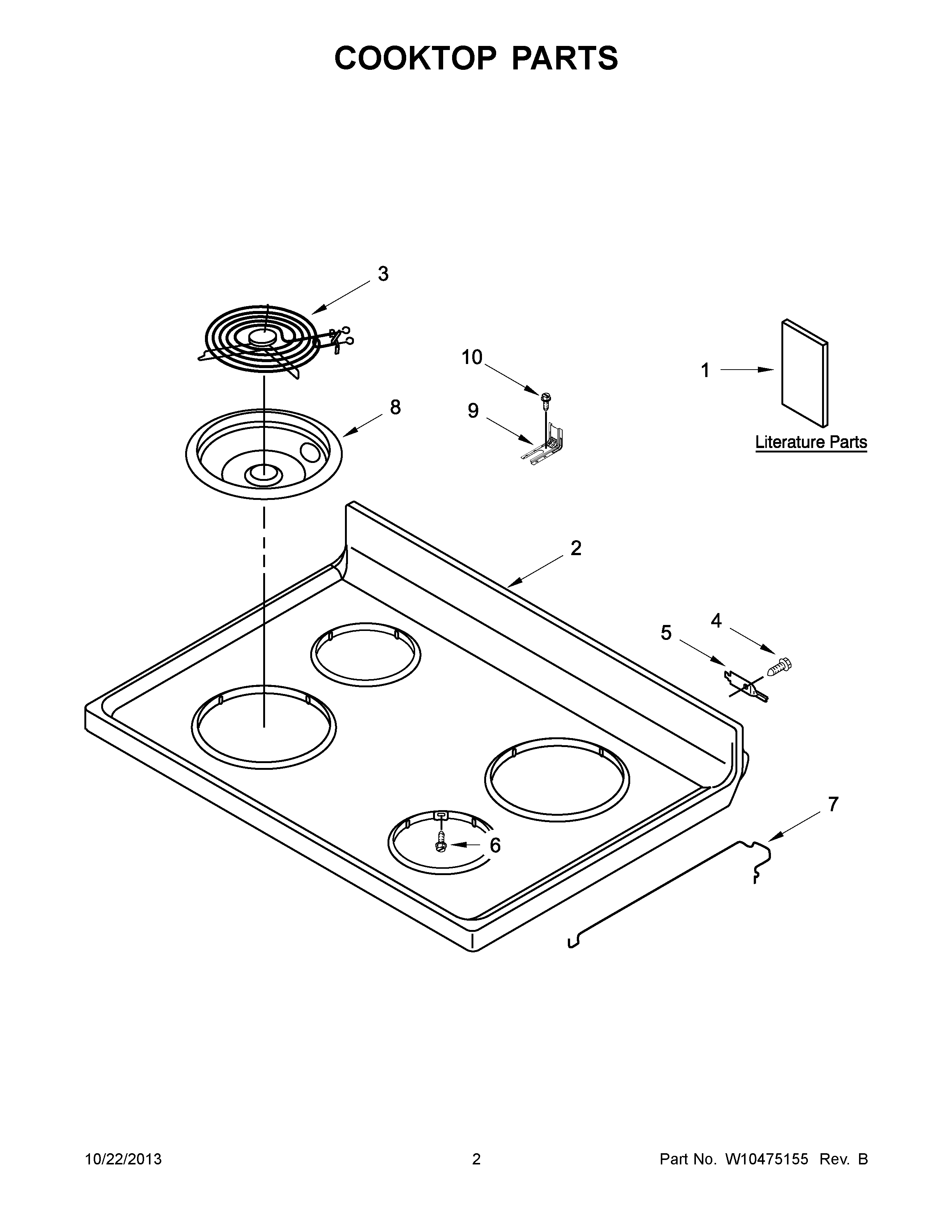

YMER7660WW2 02 – COOKTOP PARTS

YMER7660WW2 02 – COOKTOP PARTS

Written by

in

YMER7660WW2 02 – COOKTOP PARTS

Products

PositionProduct
1USER INSTRUCTIONS
1SHEET, TECH (ENGLISH)
1SHEET, TECH (FRENCH)
1MAY W10403812
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2COOKTOP (BLACK)
2COOKTOP (WHITE)
3ELEMENT (6“)
3ELEMENT (8“)
4MAY 4449154
5HINGE, COOKTOP
6SCREW
7ROD, SUPPORT
8BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
8BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
9BRACKET, ANTI-TIP
10SCREW, ANTI-TIP KIT
