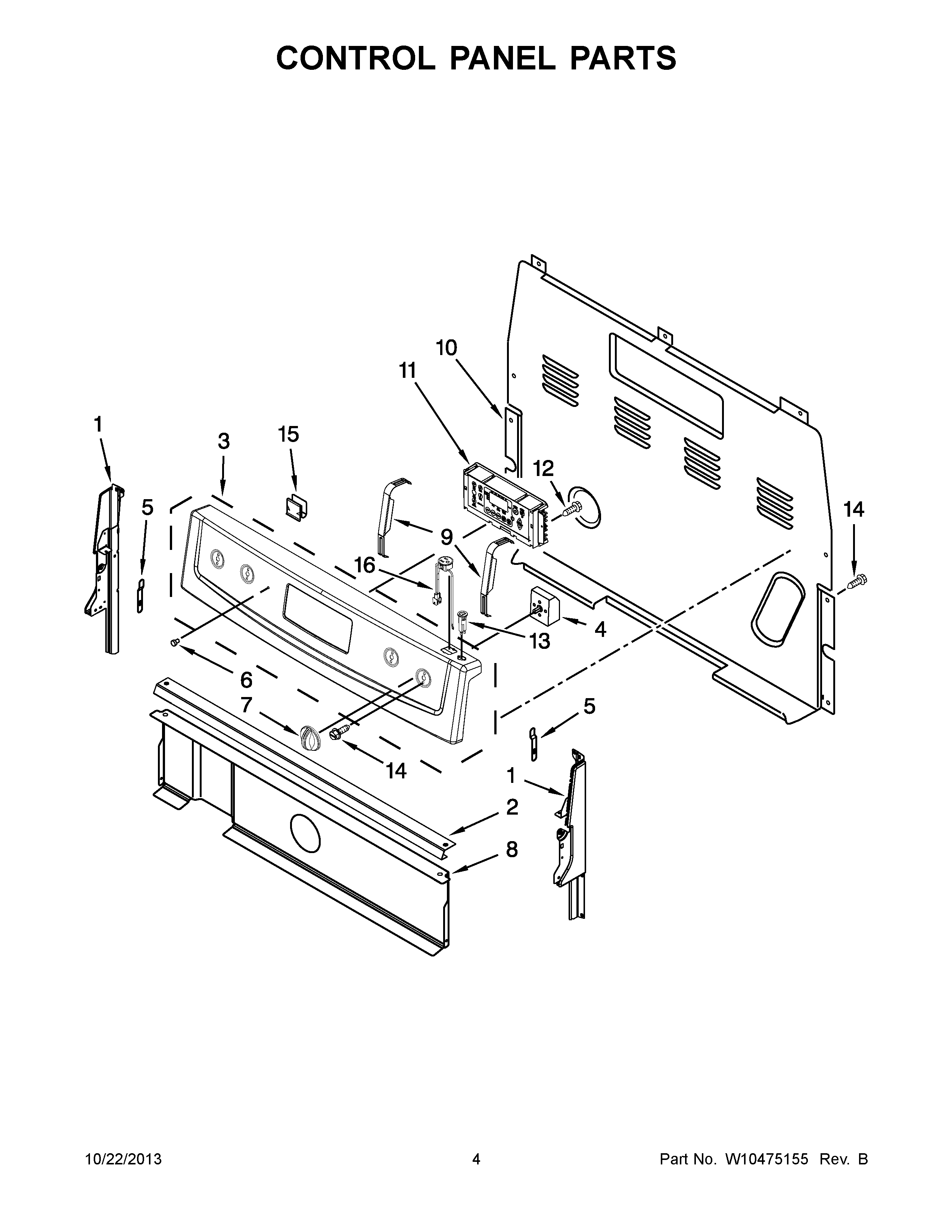

YMER7660WW2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	MAY W10292019
3	MAY W10292017
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5	CLIP, SPRING
6	MAY 3196068
7	KNOB, INFINITE (WHITE)
7	MAY W10211372
8	SHIELD, HEAT
9	MAY W10324410
10	COVER, UPPER REAR
11	MAY W10476675
11	LINER (NOT A SERVICEABLE PART)
12	SCREW
13	BREAKER, CIRCUIT (WHITE)
13	BREAKER, CIRCUIT (BLACK)
14	SCREW
15	MAY 8273564
16	RECEPTACLE (WHITE)
16	RECEPTACLE (BLACK)
