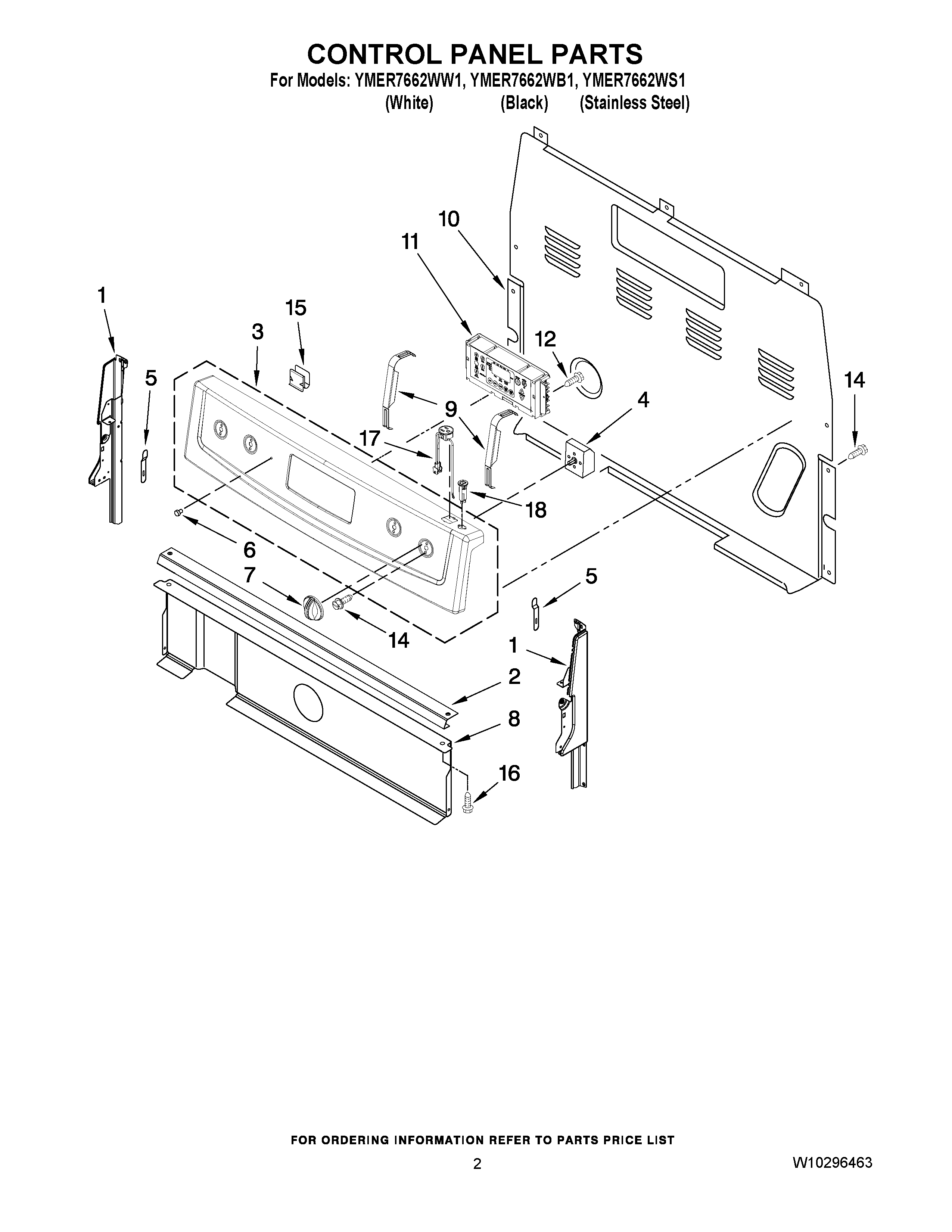

YMER7662WB1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	Bracket, Console
3	MAY W10292024
3	MAY W10292023
3	PANEL, CONTROL (STAINLESS)
4	SWITCH, INFINITE (LEFT-FRONT)
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	Switch, Infinite (LF,RF)
5	CLIP, SPRING
6	MAY 3196068
7	MAY W10211372
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	BRACKET, MOUNTING, EOC
10	COVER, UPPER REAR
11	MAY W10236239
11	MAY W10236240
12	SCREW
14	SCREW
15	MAY 8273564
16	Screw (Black)
16	Screw (White)
17	RECEPTACLE (WHITE)
17	RECEPTACLE (BLACK)
18	BREAKER, CIRCUIT (WHITE)
18	BREAKER, CIRCUIT (BLACK)
