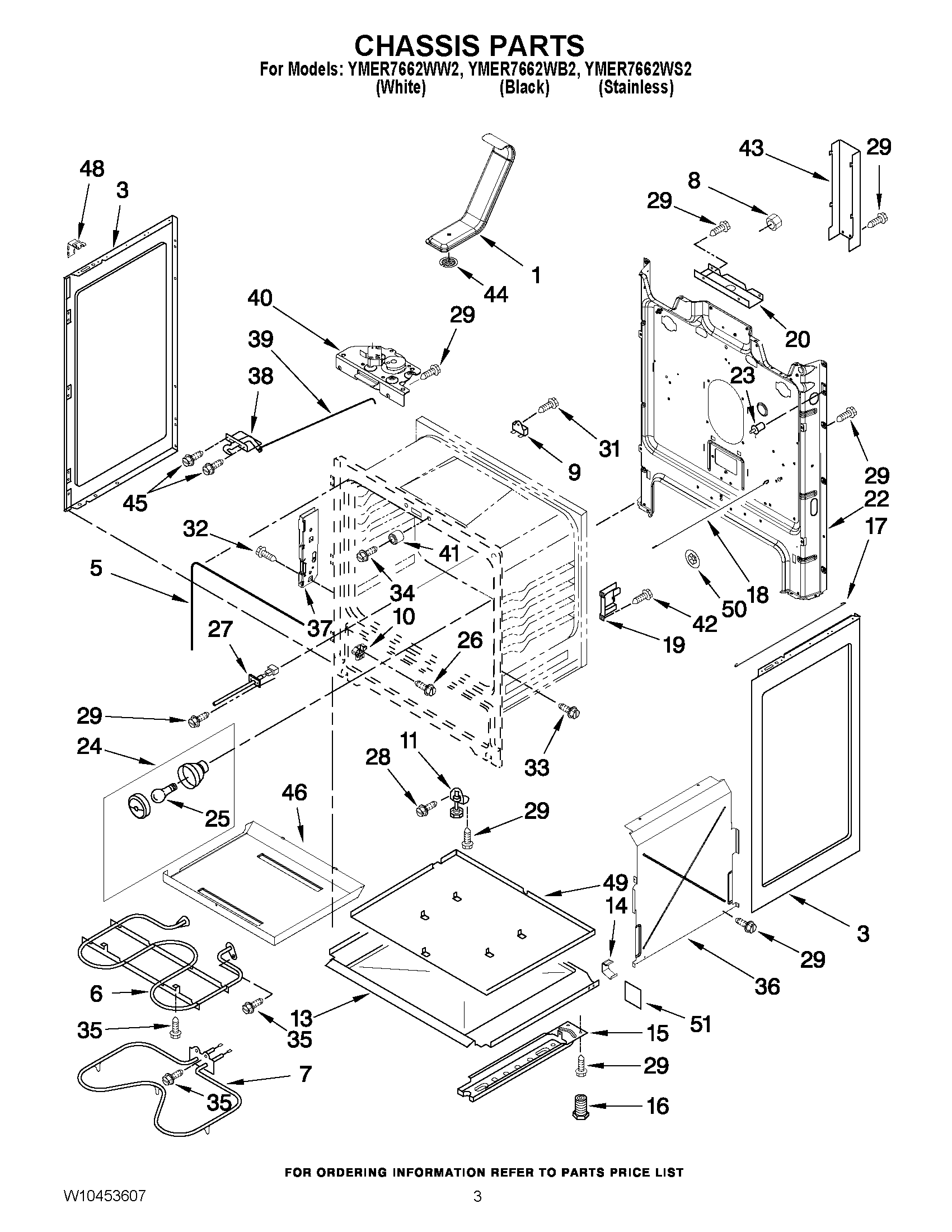

YMER7662WB2 03 – CHASSIS PARTS

YMER7662WB2 03 – CHASSIS PARTS

Written by

in

YMER7662WB2 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10208653
NI	MAY 9759689
NI	INSULATION, FLUE
NI	INSULATION, BACK
1	TUBE, VENT
3	MAY W10322770
3	MAY W10322769
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE (HIDDEN)
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	Glide, Drawer
11	ASSEMBLY, FRONT FOOT
13	TRAY, INSULATION
14	CLIP, PANEL
15	RAIL, BASE
16	FOOT, LEVELING
17	ROD, INSULATION RETAINER
18	ROD, DOOR SWITCH
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
22	MAY 8274034
23	MAY 9757262
24	MAY 3196701
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
28	Screw
29	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
34	Screw (Black)
35	SCREW
36	RETAINER, INSULATION
37	RECEIVER, HINGE
38	ASSEMBLY, DOOR LATCH (FRONT)
39	ROD, LATCH
40	ASSEMBLY, LATCH (REAR)
41	SPACER, DOOR
42	SCREW
43	COVER, TERMINAL BLOCK
44	MAY 9761301
45	SCREW
46	TRAY, HIDDEN BAKE
48	CLIP, SPRING STEEL
49	SHIELD, HEAT
50	MAY 3400968
