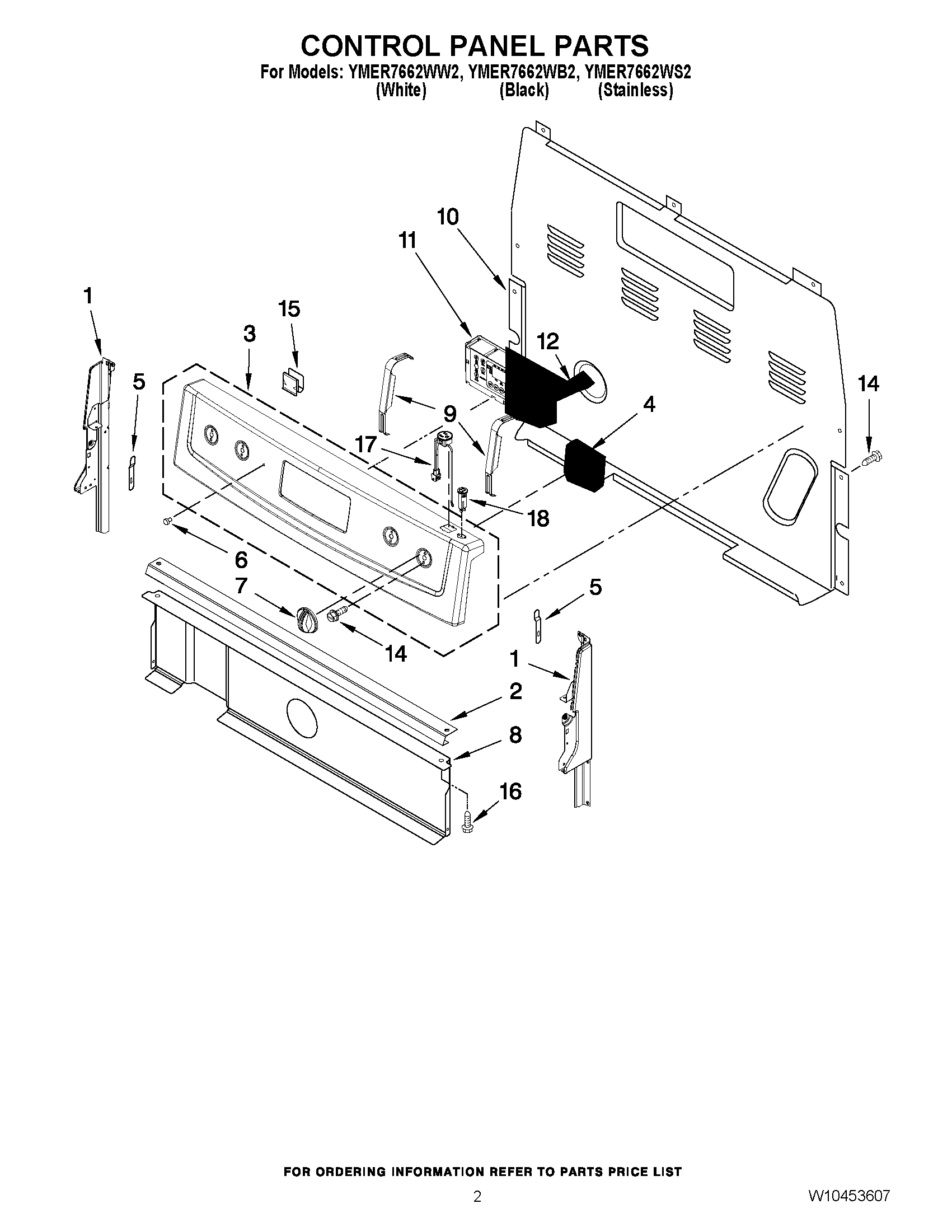

YMER7662WS2 02 – CONTROL PANEL PARTS

YMER7662WS2 02 – CONTROL PANEL PARTS

Written by

in

YMER7662WS2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (LEFT))
2Bracket, Console
3PANEL, CONTROL (STAINLESS)
3MAY W10292024
3MAY W10292023
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT-FRONT)
4SWITCH, INFINITE (LR, RR)
5CLIP, SPRING
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11MAY W10236240
11MAY W10236239
12SCREW
14SCREW
15MAY 8273564
16SCREW
17RECEPTACLE (BLACK)
17RECEPTACLE (WHITE)
18BREAKER, CIRCUIT (BLACK)
18BREAKER, CIRCUIT (WHITE)
