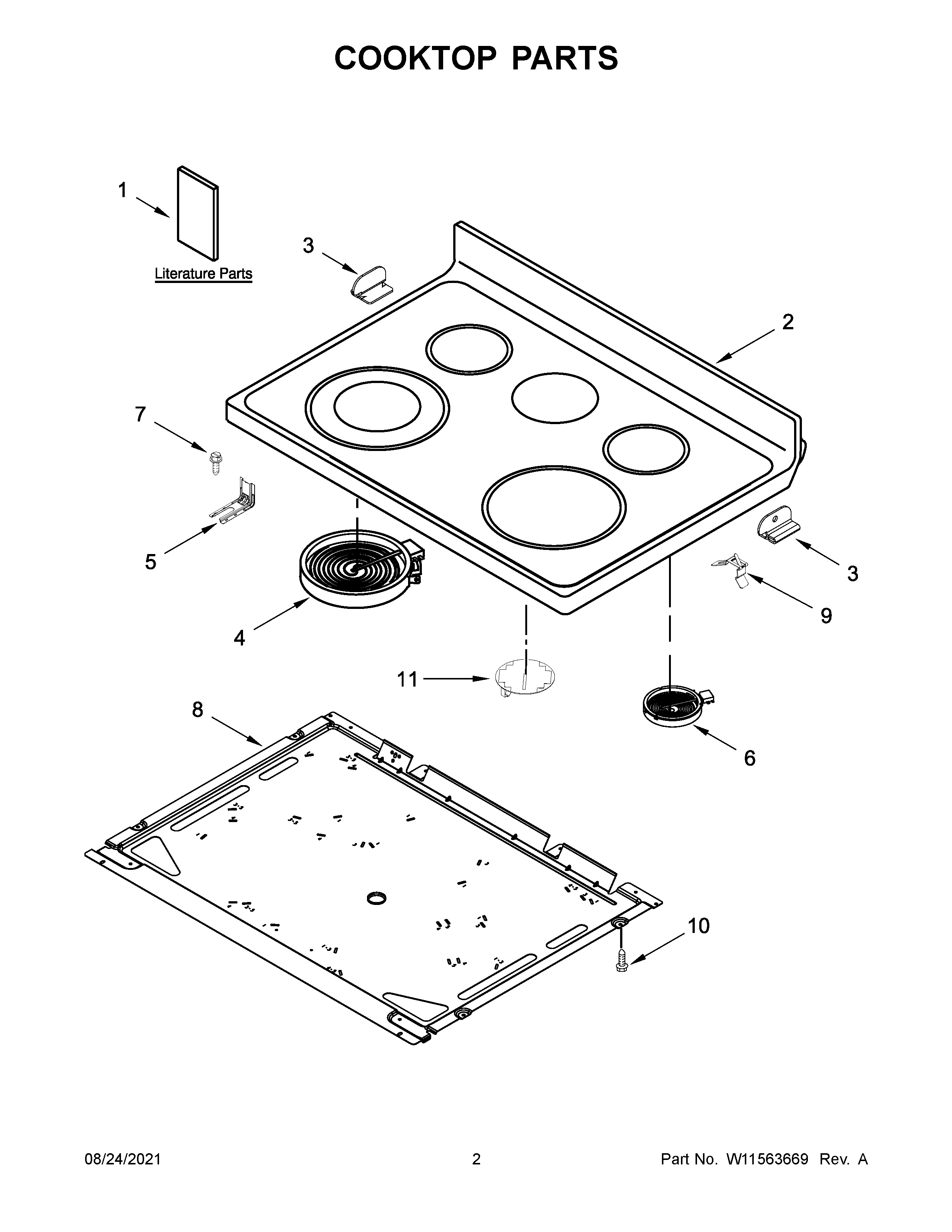

YMER7700LZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134845 Whirlpool Wire Harness
NI	W11675846 Whirlpool Wire Harness
NI	WPW10281322 Whirlpool Connector
NI	W11172528 Whirlpool Harness Wire
NI	W11536419 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
1B	TECH SHEET
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W11548507 Whirlpool Cooktop Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W11447673 Whirlpool Range Tip Anchor
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	W11041453 Whirlpool Surface Element
